GS1G, GS1A - SURFACE MOUNT RECTIFIER

GS1G Description

GS1A~GS1N SURFACE MOUNT RECTIFIER VOLTAGE 50 to 1200 Volt CURRENT 1 Ampere .

GS1G Applications

* in order to optimize board space
* Easy pick and place
* Plastic package has Underwriters Laboratory Flammability Classification 94V-O
* Low Forward Drop
* High temperature soldering : 260°C /10 seconds at terminals
* Glass Passivated Chip Junction
* L

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GS1G, GS1A. Please refer to the document for exact specifications by model.

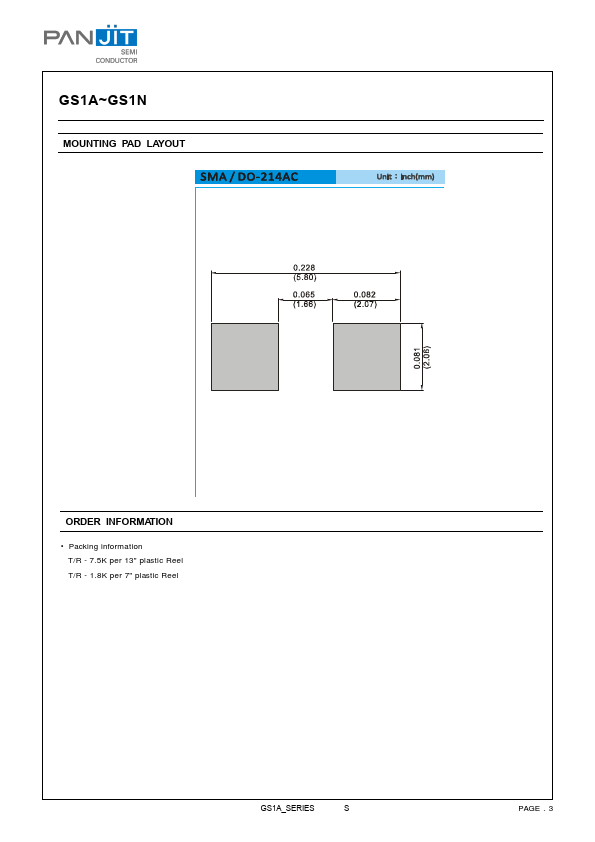

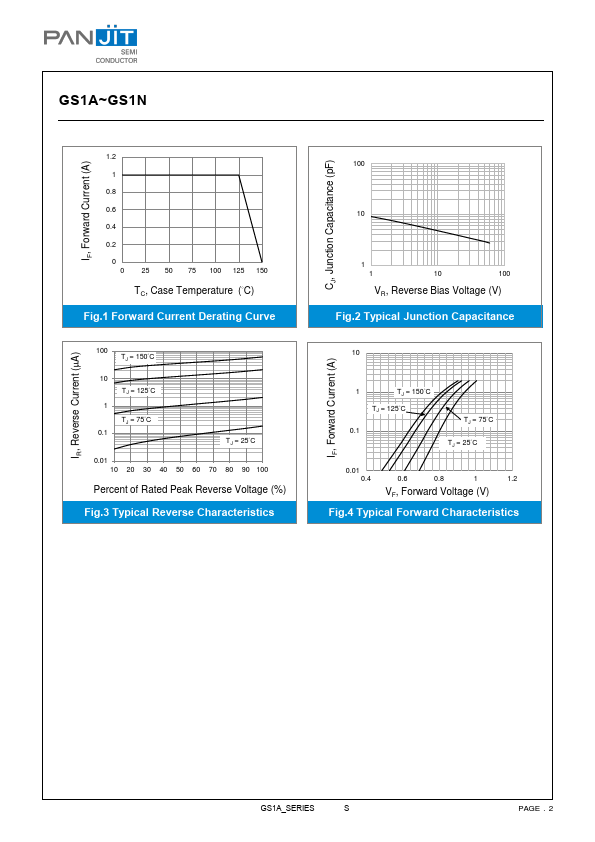

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GS1G, GS1A
Manufacturer
PANJIT
File Size
227.29 KB
Datasheet
GS1A-PANJIT.pdf
Description
SURFACE MOUNT RECTIFIER
Note
This datasheet PDF includes multiple part numbers: GS1G, GS1A.
Please refer to the document for exact specifications by model.
