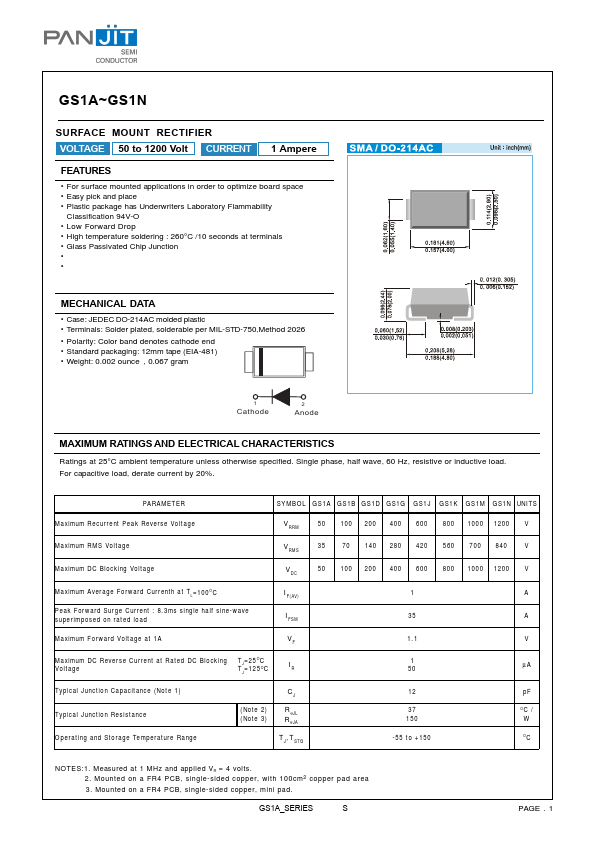

GS1J
FEATURES
- For surface mounted applications in order to optimize board space
- Easy pick and place
- Plastic package has Underwriters Laboratory Flammability
Classification 94V-O
- Low Forward Drop
- High temperature soldering : 260°C /10 seconds at terminals
- Glass Passivated Chip Junction
- Lead free in pliance with EU Ro HS 2.0
- Green molding pound as per IEC 61249 standard
MECHANICAL DATA

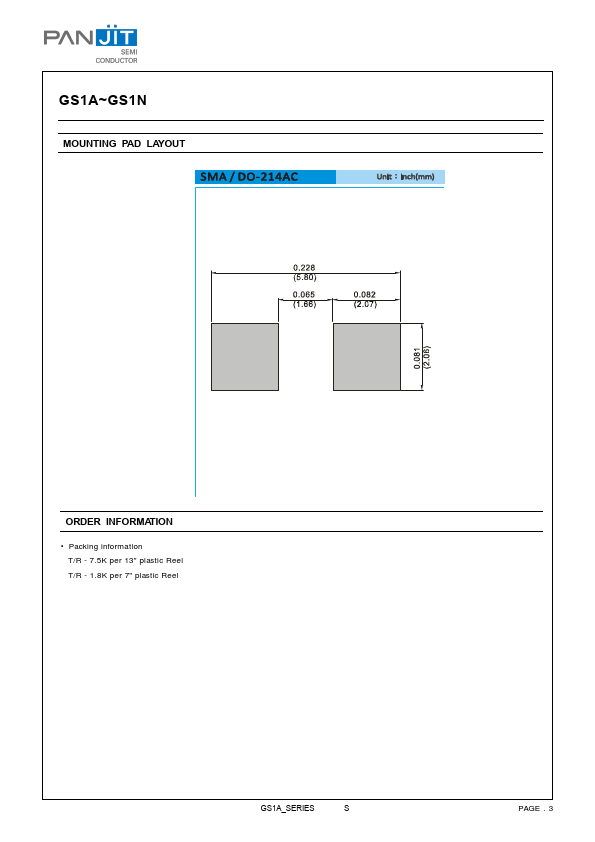

- Case: JEDEC DO-214AC molded plastic
- Terminals: Solder plated, solderable per MIL-STD-750,Method 2026
- Polarity: Color band denotes cathode end
- Standard packaging: 12mm tape (EIA-481)
- Weight: 0.002 ounces, 0.067 grams
Cathode
Anode

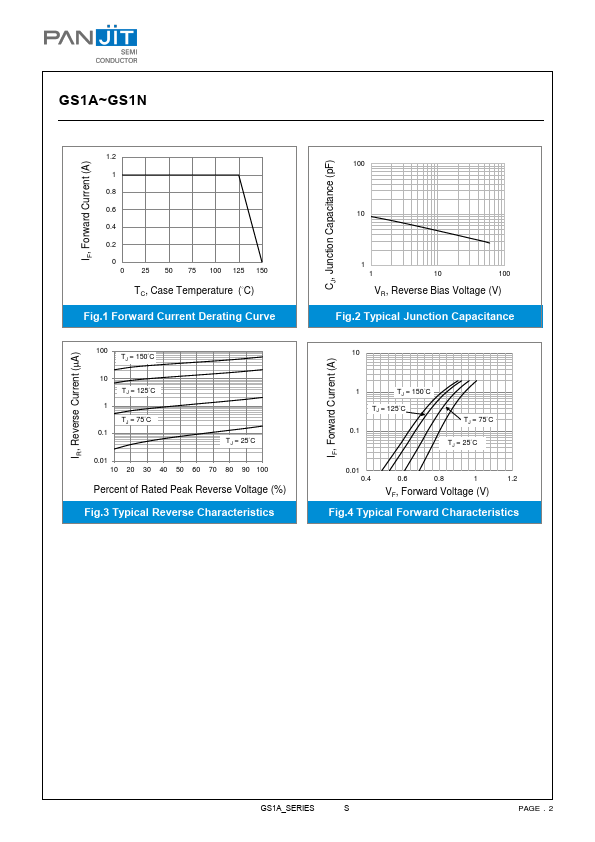

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.
PA RAM ET E R
SYMBOL GS1A GS1B GS1D GS1G GS1J GS1K GS1M GS1N UNITS
Maximum Recurrent Peak Reverse Voltage
VRRM
50 100 200 400 600 800...
