LS4150 FAST SWITCHING SURFACE MOUNT DIODES

PANJIT

Description

LS4150 FAST SWITCHING SURFACE MOUNT DIODES VOLTAGE 50 Volts POWER 500 mWatts .

📥 Download Datasheet

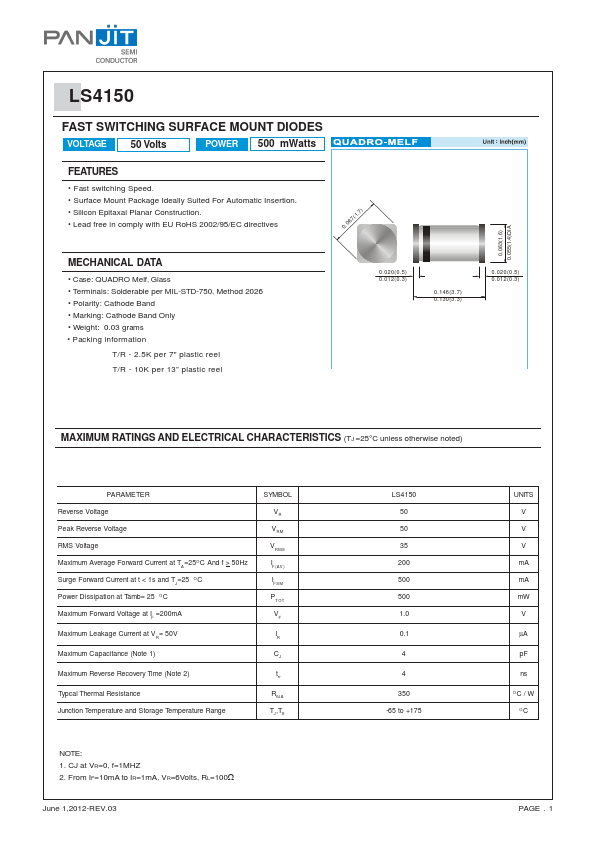

LS4150 Datasheet Preview — Preview of LS4150 PDF

Datasheet Specifications

Part number: LS4150
Manufacturer: PANJIT
File Size: 91.83 KB
Datasheet: LS4150-PANJIT.pdf
Description: FAST SWITCHING SURFACE MOUNT DIODES

Features

* Fast switching Speed.
* Surface Mount Package Ideally Suited For Automatic Insertion.
* Silicon Epitaxal Planar Construction.
* Lead free in comply with EU RoHS 2002/95/EC directives MECHANICAL DATA
* Case: QUADRO Melf, Glass
* Terminals: Solderable

Applications

* shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further
