P1CH6.0A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Product Overview

PANJIT

📥 Download Datasheet

P1CH6.0A SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR by PANJIT - Datasheet Preview — Datasheet preview – P1CH6.0A

Datasheet Details

Part number	P1CH6.0A
Manufacturer	PANJIT
File Size	274.39 KB
Description	SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
Datasheet	P1CH6.0A Datasheet
Note	This datasheet PDF includes multiple part numbers: P1CH6.0A, P1CH3.3A. Please refer to the document for exact specifications by model.

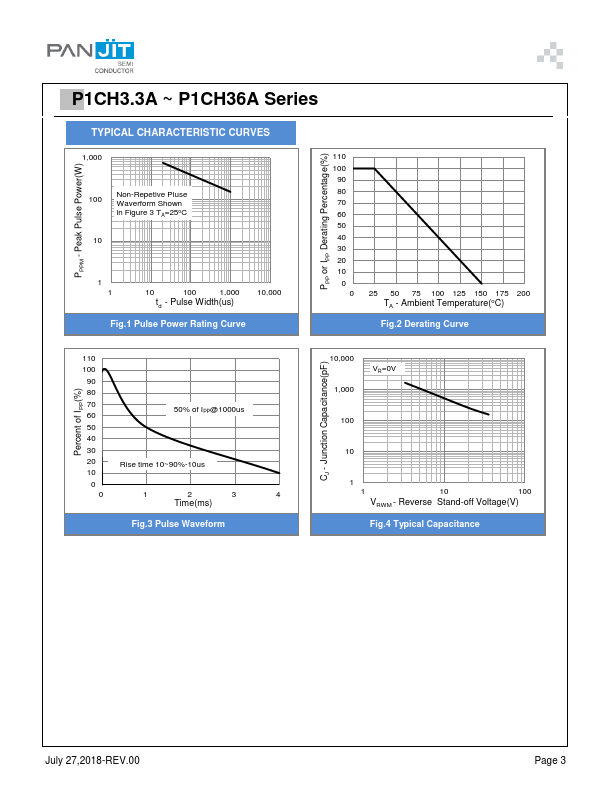

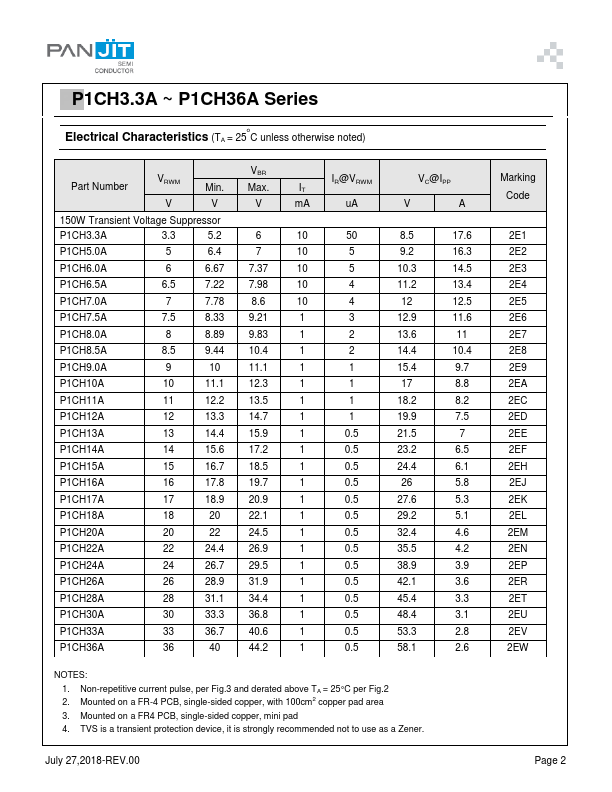

Additional preview pages of the P1CH6.0A datasheet.

Product details

Features

Ultra thin profile package for space constrained utilization.
High temperature soldering : 260℃/10 seconds at terminals.
Lead free in compliance with EU RoHS 2.0.
Green molding compound as per IEC 61249 standard Mechanical Data.
Case: Molded plastic, SOD-323HE.
Terminals: Solder plated, solderable per MIL-STD-750, Method 2026.
Polarity: Color Band denotes cathode end Maximum Ratings and Thermal Characteristics (TA = o 25 C unless otherwise noted).
