EPB5033 Datasheet - PCA ELECTRONICS

EPB5033 ADSL Modem Transformer

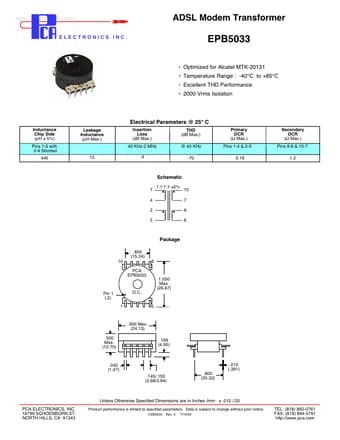

www.DataSheet4U.com ADSL Modem Transformer ELECTRONICS INC. EPB5033 Optimized for Alcatel MTK-20131 Temperature Range : -40°C to +85°C Excellent THD Performance 2000 Vrms Isolation Electrical Parameters @ 25° C Inductance Chip Side (µH ± 5%) Pins 1-5 with 2-4 Shorted 440 15 Leakage Inductance (µH Max.) Insertion Loss (dB Max.) 40 KHz-2 MHz -3 THD (dB Max.) @ 40 KHz -70 Primary DCR (Ω Max.) Pins 1-4 & 2-5 0.16 Secondary DCR (Ω Max.) Pins 9-6 & 10-7 1.2 .

EPB5033_PCAELECTRONICS.pdf

EPB5033 Datasheet Preview — Preview of EPB5033 PDF

Datasheet Details

Part number:

EPB5033

Manufacturer:

PCA ELECTRONICS

File Size:

71.02 KB

Description:

Adsl modem transformer.
