EPB5038G Discrete Line Interface Transformer

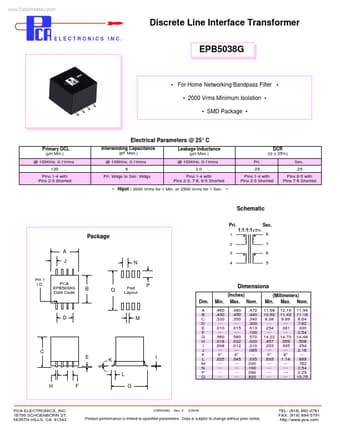

www.DataSheet4U.com Discrete Line Interface Transformer ELECTRONICS INC. EPB5038G For Home Networking Bandpass Filter 2000 Vrms Minimum Isolation SMD Package Electrical Parameters @ 25° C Primary OCL (µH Min.) @ 100KHz, 0.1Vrms 120 Pins 1-4 with Pins 2-3 Shorted Interwinding Capacitance (pF Max.) @ 100KHz, 0.1Vrms 6 Pri. Wdgs to Sec. Wdgs Leakage Inductance (µH Max.) @ 100KHz, 0.1Vrms 2.0 Pins 1-4 with Pins 2-3, 7-6, 8-5 Shorted Pri.

EPB5038G_PCAELECTRONICS.pdf

EPB5038G Datasheet Preview — Preview of EPB5038G PDF

Datasheet Details

Part number:

EPB5038G

Manufacturer:

PCA ELECTRONICS

File Size:

51.88 KB

Description:

Discrete line interface transformer.
