EPC3115S-x (EPC3115S-x / EPC3115S-x-LF) Push-Pull Low Power Transformer

www.DataSheet4U.com Push-Pull Low Power Transformer ELECTRONICS INC. EPC3115S-X & EPC3115S-X-LF Designed for use with Maxim Max253/Max3535E Add “-LF” after part number for Lead-Free Used in SMPS Push-Pull Topology UL 94V-0 Recognized Components UL 1446 Class B Insulation System Switching Frequency : 350 KHz 8 Pin SOIC PCMCIA Package 700 Vdc Minimum Isolation Very Low Core Loss Electrical Parameters @ 25° .

EPC3115S-x_PCAELECTRONICS.pdf

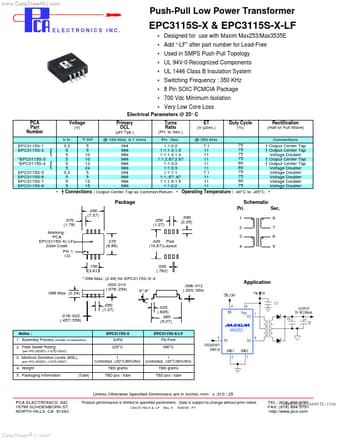

Preview of EPC3115S-x PDF

Datasheet Details

Part number:

EPC3115S-x

Manufacturer:

PCA ELECTRONICS

File Size:

152.62 KB

Description:

(epc3115s-x / epc3115s-x-lf) push-pull low power transformer.
