EPC3205G-x-LF - Photoflash Flyback Transformer

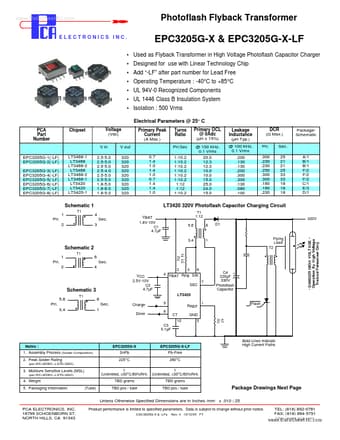

www.DataSheet4U.com Photoflash Flyback Transformer ELECTRONICS INC.

EPC3205G-X & EPC3205G-X-LF Used as Flyback Transformer in High Voltage Photoflash Capacitor Charger Designed for use with Linear Technology Chip Add “-LF” after part number for Lead Free Operating Temperature : -40°C to +85°C UL 94V-0 Recognized Components UL 1446 Class B Insulation System Isolation : 500 Vrms Electrical Parameters @ 25° C PCA Part Number

EPC3205G-x_PCAELECTRONICS.pdf

EPC3205G-x-LF Datasheet Preview — This datasheet PDF includes multiple part numbers: EPC3205G-x-LF, EPC3205G-x. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

EPC3205G-x-LF, EPC3205G-x

Manufacturer:

PCA ELECTRONICS

File Size:

76.94 KB

Description:

Photoflash flyback transformer.

Note:

This datasheet PDF includes multiple part numbers: EPC3205G-x-LF, EPC3205G-x.
Please refer to the document for exact specifications by model.
