EPC3215G-X Datasheet - PCA ELECTRONICS

EPC3215G-X High Voltage Trigger Transformer

www.DataSheet4U.com High Voltage Trigger Transformer ELECTRONICS INC. EPC3215G-X Used as Trigger Transformer in Photoflash Circuits Operating Temperature : -40°C to +85°C UL 94V-0 Recognized Components Actual Size UL 1446 Class B Insulation System Electrical Parameters @ 25° C PCA Part Number EPC3215G-1 EPC3215G-2 EPC3215G-3 Voltage (Vdc) V in 300 300 300 Peak Trigger Voltage (V Min.) 4000 4000 4000 Primary OCL @ 0Adc (µH Typ.) @ 100 KHz, 0.1 Vrms 1..

EPC3215G-X_PCAELECTRONICS.pdf

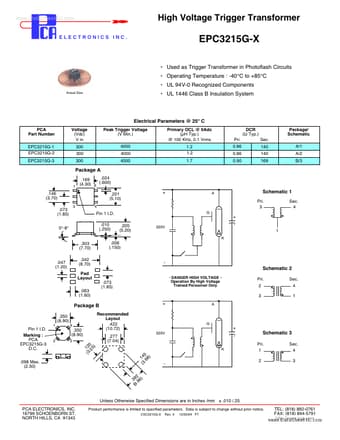

Preview of EPC3215G-X PDF

Datasheet Details

Part number:

EPC3215G-X

Manufacturer:

PCA ELECTRONICS

File Size:

81.85 KB

Description:

High voltage trigger transformer.
