P20150E - MOS Schottky Rectifier

P20150E Description

PFC Device Corporation P20150E P20150D 20A 150V MOS Schottky Rectifier Major ratings and characteristics Characteristics IF(AV) Rectangular Wavefo.

P20150E Features

* Low Forward Voltage Drop
* Reliable High Temperature Operation
* Softest, fast switching capability
* 175oC Operating Junction Temperature

P20150E Applications

* Device optimized for low forward voltage drop to maximize efficiency in Power Supply applications P20150E 2 3 1 TO-251 (I-PAK) P20150D 2 3 1 TO-252 (D-PAK) Sep-2015 Version 4.0 1/6 www. pfc-device. com Characteristics P20150 1. Characteristics Maximum Ratings Characteristics ( TA = 25℃ unless

📥 Download Datasheet

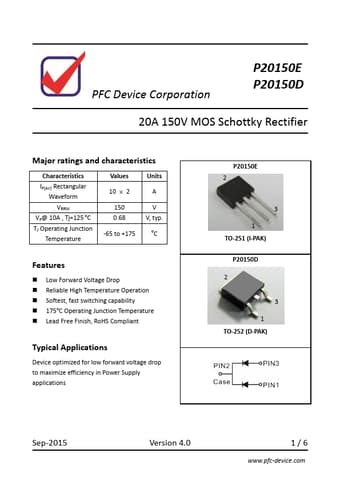

Preview of P20150E PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
P20150E
Manufacturer
PFC Device Corporation
File Size
757.97 KB
Datasheet
P20150E-PFCDeviceCorporation.pdf
Description
MOS Schottky Rectifier
