P2010A - Low Frequency EMI Reduction IC

Product Overview

ON Semiconductor

Datasheet Details

Part number	P2010A
Manufacturer	ON Semiconductor
File Size	103.31 KB
Description	Low Frequency EMI Reduction IC
Datasheet	P2010A Datasheet

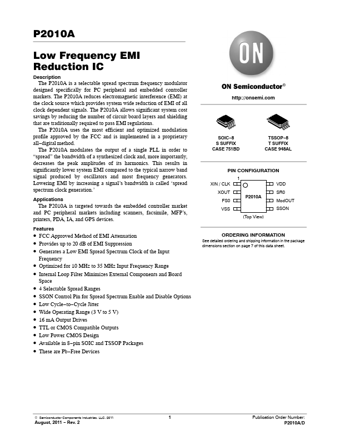

Additional preview pages of the P2010A datasheet.

Product details

Description

The P2010A is a selectable spread spectrum frequency modulator designed specifically for PC peripheral and embedded controller markets.The P2010A reduces electromagnetic interference (EMI) at the clock source which provides system wide reduction of EMI of all clock dependent signals.The P2010A allows significant system cost savings by reducing the number of circuit board layers and shielding that are traditionally required to pass EMI regulations.The P2010A uses the most efficient and optimiz

Features

FCC Approved Method of EMI Attenuation.
Provides up to 20 dB of EMI Suppression.
Generates a Low EMI Spread Spectrum Clock of the Input Frequency.
Optimized for 10 MHz to 35 MHz Input Frequency Range.
Internal Loop Filter Minimizes External Components and Board Space.
4 Selectable Spread Ranges.
SSON Control Pin for Spread Spectrum Enable and Disable Options.
Low Cycle.
to.
Cycle Jitter.
Wide Operatin.
