P3L50F-A - MOS Schottky Rectifier

Key Features

Low Forward Voltage Drop.
Reliable High Temperature Operation.
Softest, fast switching capability.
150oC Operating Junction Temperature.
Lead Free Finish, RoHS Compliant.
Green Molding Compound (No Br, Sb) Typical.

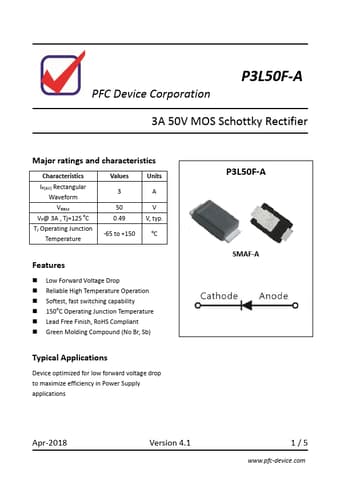

P3L50F-A mos schottky rectifier by PFC Device Corporation - Datasheet Preview

Datasheet Details

Part number	P3L50F-A
Manufacturer	PFC Device Corporation
File Size	606.07 KB
Description	MOS Schottky Rectifier
Datasheet	P3L50F-A Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer

Other Datasheets by PFC Device Corporation

Part Number	Description
P3L150A	MOS Schottky Rectifier
P3L150F-A	MOS Schottky Rectifier
P3L200A	MOS Schottky Rectifier
P3L200B	MOS Schottky Rectifier
P3L200F-A	MOS Schottky Rectifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

PFC Device Corporation P3L50F-A 3A 50V MOS Schottky Rectifier Major ratings and characteristics Characteristics IF(AV) Rectangular Waveform VRRM VF@ 3A , Tj=125 oC TJ Operating Junction Temperature Values 3 50 0.49 -65 to +150 Units A V V, typ. oC Features  Low Forward Voltage Drop  Reliable High Temperature Operation  Softest, fast switching capability  150oC Operating Junction Temperature  Lead Free Finish, RoHS Compliant  Green Molding Compound (No Br, Sb) Typical Applications Device optimized for low forward voltage drop to maximize efficiency in Power Supply applications P3L50F-A SMAF-A Apr-2018 Version 4.1 1/5 www.pfc-device.com Characteristics P3L50F-A 1.
