PFR20L100CT Datasheet - PFC Device Corporation

PFR20L100CT, Schottky Rectifier

PFC Device Corporation PFR20L100CT PFR20L100CTF PFR20L100CTI PFR20L100CTB the following .

PFR20L100CT-PFCDeviceCorporation.pdf

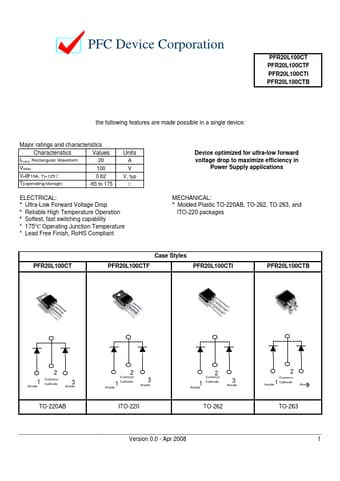

PFR20L100CT Datasheet Preview — Preview of PFR20L100CT PDF

Datasheet Details

Part number:

PFR20L100CT

Manufacturer:

PFC Device Corporation

File Size:

63.06 KB

Description:

Schottky Rectifier

Features

* are made possible in a single device: Major ratings and characteristics Characteristics Values IF(AV) Rectangular Waveform 20 VRRM 100 VF@10A, Tj=125℃ Tj(operating/storage) 0.62 -65 to 175 Units A V V, typ ℃ ELECTRICAL:
* Ultra-Low Forward Voltage Drop
* Reliable High Temperature

Applications

* MECHANICAL:
* Molded Plastic TO-220AB, TO-262, TO-263, and ITO-220 packages PFR20L100CT Case Styles PFR20L100CTF PFR20L100CTI PFR20L100CTB 1 Anode 2 Common Cathode 3 Anode TO-220AB 2 Common 1 Cathode Anode 3 Anode ITO-220 1 Anode 2 Common Cathode 3 Anode TO-262 2 Common 1 Cathod
