PFR20L100CTF, PFR20L100CT Datasheet - PFC Device Corporation

PFR20L100CTF Schottky Rectifier

PFR20L100CTF Features

* are made possible in a single device: Major ratings and characteristics Characteristics Values IF(AV) Rectangular Waveform 20 VRRM 100 VF@10A, Tj=125℃ Tj(operating/storage) 0.62 -65 to 175 Units A V V, typ ℃ ELECTRICAL:

* Ultra-Low Forward Voltage Drop

* Reliable High Temperature

PFR20L100CT-PFCDeviceCorporation.pdf

This datasheet PDF includes multiple part numbers: PFR20L100CTF, PFR20L100CT. Please refer to the document for exact specifications by model.

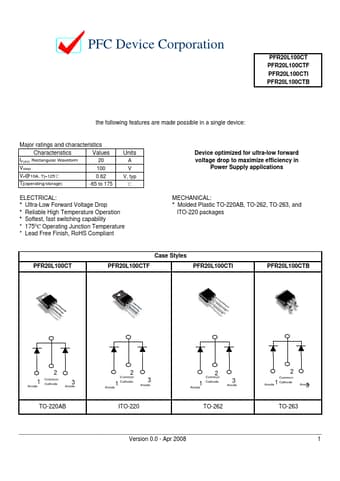

PFR20L100CTF Datasheet Preview Page 2 PFR20L100CTF Datasheet Preview Page 3

Datasheet Details

Part number:

PFR20L100CTF, PFR20L100CT

Manufacturer:

PFC Device Corporation

File Size:

63.06 KB

Description:

Schottky rectifier.

Note:

This datasheet PDF includes multiple part numbers: PFR20L100CTF, PFR20L100CT.
Please refer to the document for exact specifications by model.
