GBU2010 - SINGLE PHASE 20.0AMPS GLASS PASSIVATED BRIDGE RECTIFIERS

This page provides the datasheet information for the GBU2010, a member of the GBU2006 SINGLE PHASE 20.0AMPS GLASS PASSIVATED BRIDGE RECTIFIERS family.

📥 Download Datasheet

Datasheet preview – GBU2010

Datasheet Details

Part number GBU2010
Manufacturer PINGWEI
File Size 273.37 KB
Description SINGLE PHASE 20.0AMPS GLASS PASSIVATED BRIDGE RECTIFIERS
Datasheet download datasheet GBU2010 Datasheet

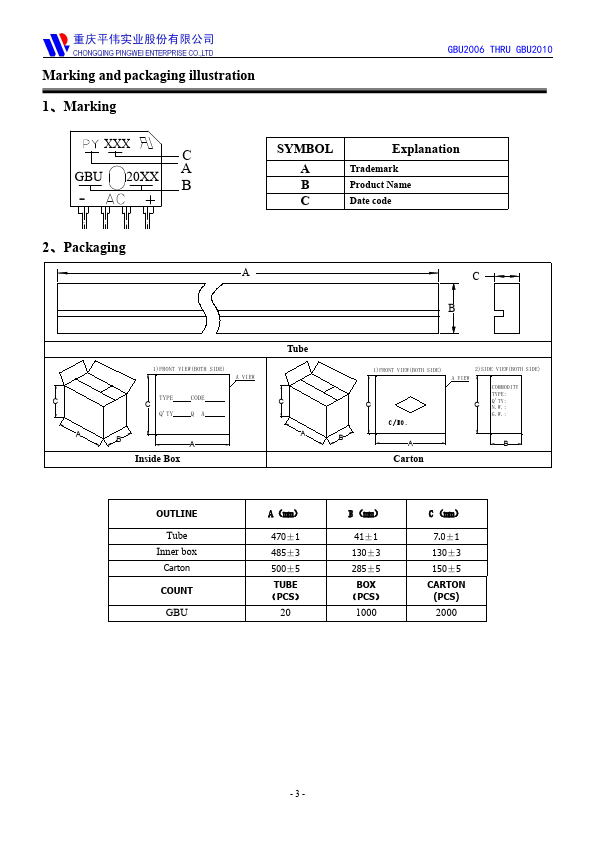

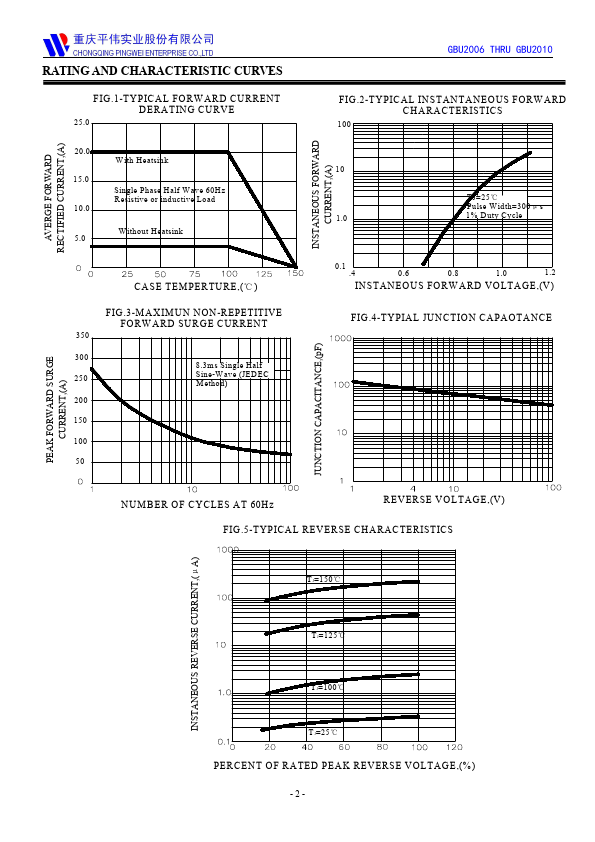

Additional preview pages of the GBU2010 datasheet.

📁 Similar Datasheet

Other Datasheets by PINGWEI
  • GBU2006 - SINGLE PHASE 20.0AMPS GLASS PASSIVATED BRIDGE RECTIFIERS
  • GBU2008 - SINGLE PHASE 20.0AMPS GLASS PASSIVATED BRIDGE RECTIFIERS

Full PDF Text Transcription

Click to expand full text

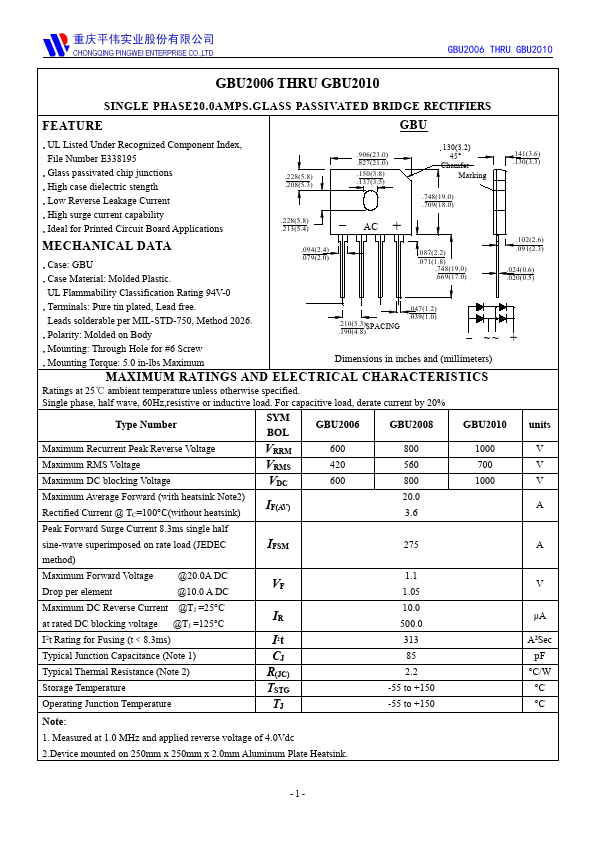

GBU2006 THRU GBU2010 GBU2006 THRU GBU2010 SINGLE PHASE20.0AMPS.GLASS PASSIVATED BRIDGE RECTIFIERS FEATURE GBU .UL Listed Under Recognized Component Index, File Number E338195 .Glass passivated chip junctions .High case dielectric stength .Low Reverse Leakage Current .High surge current capability .Ideal for Printed Circuit Board Applications MECHANICAL DATA .Case: GBU .Case Material: Molded Plastic. .228(5.8) .208(5.3) .906(23.0) .827(21.0) .150(3.8) .137(3.5) .228(5.8) .213(5.4) - .094(2.4) .079(2.0) AC + 130(3.2) 45° Chamfer Marking .748(19.0) .709(18.0) .087(2.2) .071(1.8) .748(19.0) .669(17.0) .141(3.6) .130(3.3) .102(2.6) .091(2.3) .024(0.6) .020(0.5) UL Flammability Classification Rating 94V-0 .Terminals: Pure tin plated, Lead free.
