PW080N10GS - 100V 85A Perfect MOS5 N-MOSFET

The PW080N10GS by PINGWEI is a 100V 85A Perfect MOS5 N-MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

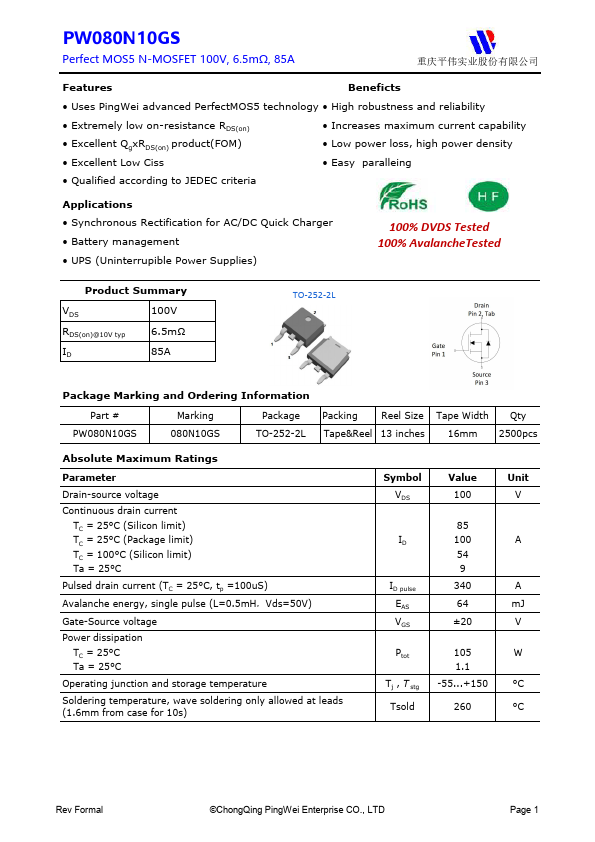

PW080N10GS 100V 85A Perfect MOS5 N-MOSFET by PINGWEI - Datasheet Preview — Official preview page of the PW080N10GS 100V 85A Perfect MOS5 N-MOSFET datasheet (PINGWEI).

Datasheet Details

Part number	PW080N10GS
Manufacturer	PINGWEI
File Size	1.38 MB
Description	100V 85A Perfect MOS5 N-MOSFET
Datasheet	PW080N10GS-PINGWEI.pdf

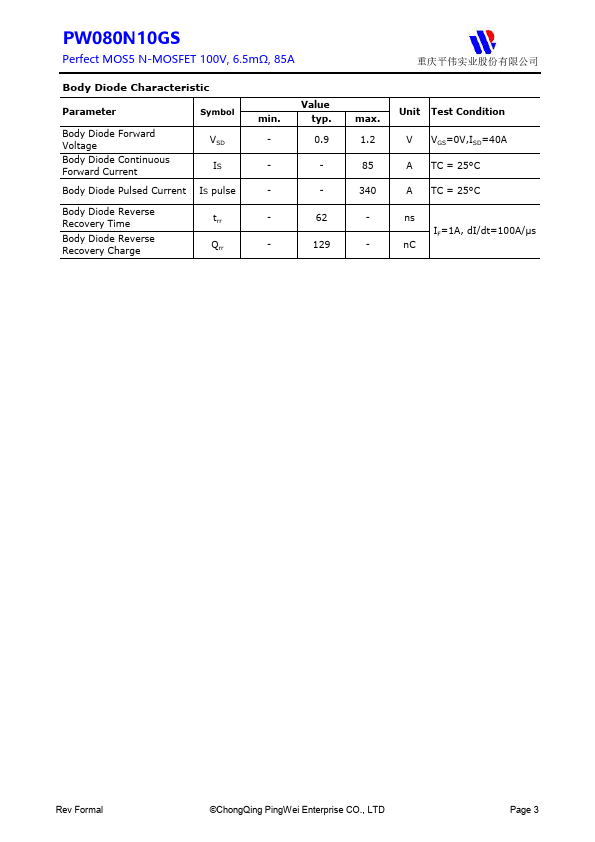

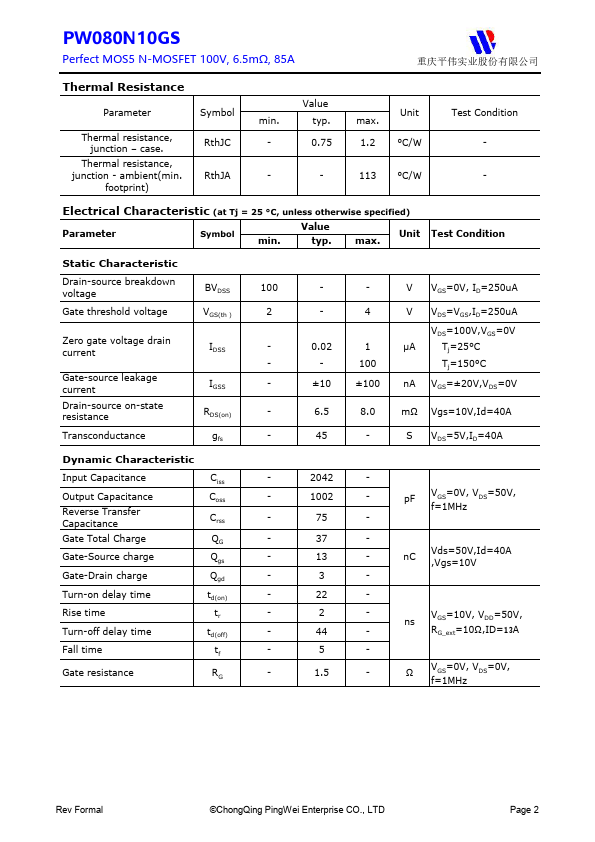

Additional preview pages of the PW080N10GS datasheet.

PW080N10GS Product details

Features

Beneficts.
Uses PingWei advanced PerfectMOS5 technology.
High robustness and reliability.
Extremely low on-resistance RDS(on).
Excellent QgxRDS(on) product(FOM).
Excellent Low Ciss.
Increases maximum current capability.
Low power loss, high power density.
Easy paralleing.
Qualified according to JEDEC criteria.
