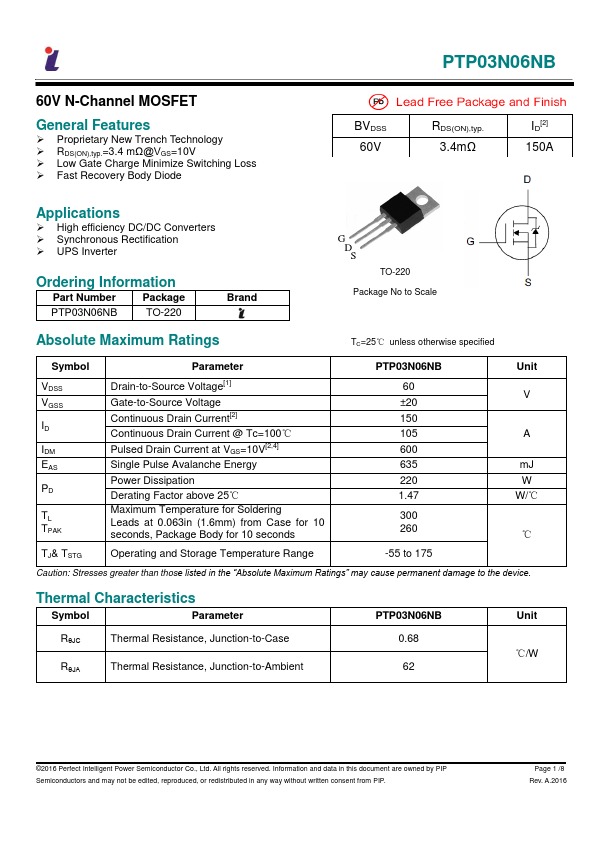

PTP03N06NB
Features
- Proprietary New Trench Technology
- RDS(ON),typ.=3.4 mΩ@VGS=10V
- Low Gate Charge Minimize Switching Loss
- Fast Recovery Body Diode
BVDSS 60V
RDS(ON),typ. 3.4mΩ
ID[2] 150A
Applications
- High efficiency DC/DC Converters
- Synchronous Rectification
- UPS Inverter
Ordering Information
Part Number Package
TO-220
Brand
TO-220 Package No to Scale
Absolute Maximum Ratings
TC=25℃ unless otherwise specified
Symbol VDSS VGSS
IDM EAS
TL TPAK
Parameter
Drain-to-Source Voltage[1]
Gate-to-Source Voltage Continuous Drain Current[2] Continuous Drain Current @ Tc=100℃ Pulsed Drain Current at VGS=10V[2,4] Single Pulse Avalanche Energy
Power Dissipation Derating Factor above 25℃ Maximum Temperature for Soldering Leads at 0.063in (1.6mm) from Case for 10 seconds, Package Body for 10 seconds
60 ±20 150 105 600 635 220 1.47
300 260
Unit V
A m J W W/℃
℃
TJ& TSTG
Operating and Storage Temperature Range
-55 to 175
Caution: Stresses greater than...
