CS411699A - Dual&Single Diode

Download the CS411699A datasheet PDF (CS410899A included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for dual&single diode.

Description

Powerex Dual Diode & Single Diode Modules are designed for use in applications requiring rectification and isolated packaging.

The modules are isolated for easy mounting with other components on a common heatsink.

POW-R-BLOKTM has been tested and recognized by the Underwriters Laboratories.

Features

  • T Electrically Isolated Heatsinking T DBC Alumina (Al2O3) Insulator T Copper Baseplate T Low Thermal Impedance for Improved Current Capability T UL Recognized (E78240) Benefits: T No Additional Insulation Components Required T Easy Installation T No Clamping Components Required T Reduce Engineering Time.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CS410899A-POWEREX.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • CS4100V-01L - Current Sense Transformers (Coilcraft)
  • CS4101 - Precision Air-Core Tach/Speedo Driver (Cherry Semiconductor Corporation)
  • CS4103 - IEEE P1394a PHY (National Semiconductor)
  • CS410M1A - Thyristors (JILIN SINO)
  • CS4121 - Low Voltage Precision Air-Core Low Voltage Precision Air-Core (Cherry Semiconductor Corporation)
  • CS4121 - Low Voltage Precision Air-Core Tach/Speedo Driver (ON Semiconductor)
  • CS4122 - Triple Air-Core Gauge Driver (ON Semiconductor)
  • CS4124 - High Side PWM FET Controller (Cherry Semiconductor Corporation)
  • CS4124 - High Side PWM FET Controller (ON Semiconductor)
  • CS4145A8H - Silicon N-Channel Power MOSFET (Huajing Microelectronics)
Other Datasheets by POWEREX

Full PDF Text Transcription

Click to expand full text

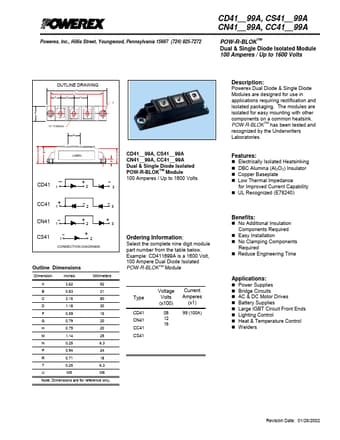

Powerex, Inc., Hillis Street, Youngwood, Pennsylvania 15697 (724) 925-7272 CD41__99A, CS41__99A CN41__99A, CC41__99A POW-R-BLOKTM Dual & Single Diode Isolated Module 100 Amperes / Up to 1600 Volts OUTLINE DRAWING A C F G H T B 1 2 3 "U" THREAD R M D LABEL CD41 ~ 1 + 2 P N 3 CD41__99A, CS41__99A CN41__99A, CC41__99A Dual & Single Diode Isolated POW-R-BLOKTM Module 100 Amperes / Up to 1600 Volts CC41 1 + - - 2 3 - CN41 1 - CS41 1 ++ 2 3 2 + CONNECTION DIAGRAMS Outline Dimensions Dimension Inches Millimeters A 3.62 92 B 0.83 21 C 3.15 80 D 1.18 30 F 0.59 15 G 0.79 20 H 0.79 20 M 1.14 29 N 0.25 6.3 P 0.94 24 R 0.71 18 T 0.25 6.3 U M5 M5 Note: Dimensions are for reference only.
Published: |
