QRD3310002 Fast Recovery Diode Module

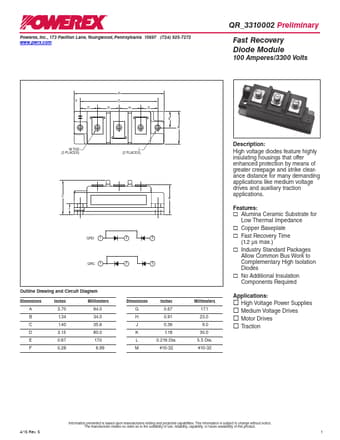

Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272 www.pwrx.com QR_3310002 Preliminary Fast Recovery Diode Module 100 Amperes/3300 Volts F G A D HH G E B M THD (3 PLACES) L (2 PLACES) C J K QRD 1 2 3 QRC 1 2 3 Outline Drawing and Circuit Diagram Dimensions A B C D E F Inches 3.70 1.34 1.40 3.15 0.67 0.28 Millimeters 94.0 34.0 35.6 80.0 17.0 6.99 Dimensions G H J K L M Inches 0.67 0.91 0.36 1.18 0.216 Dia. #10-32 Millimeters 17.1 23.0 9.0 30.0 5.5 Dia..

QRD3310002 Features

*  Alumina Ceramic Substrate for Low Thermal Impedance  Copper Baseplate  Fast Recovery Time (1.2 μs max.)  Industry Standard Packages Allow Common Bus Work to Complementary High Isolation Diodes  No
