pg12032d Datasheet - POWERTIP

pg12032d LCD_Module

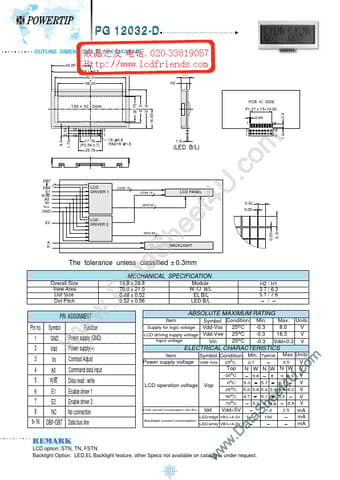

PG 12032-D OUTLINE DIMENSION & BLOCK DIAGRAM 34.05 68.1 0.5 62.0 56.35 H2 H1 120 x 32 Dots 20.75 22.5 32.9 PCB IC SIDE P1.27 x 15=19.05 16.45 0.64 1 2 1 16 16 15 3.0 0.05 0..6 2.54 16 15 17.78 (P2.54 x 7) 20.78 1.73 6.0 16- 0.8 PAD16- 1.6 1.0 (LED B/L) DB7 DB0 E1 R/W A0 Vo Vcc GND E2 LCD DRIVER 1 COM 16 COM 16 LCD PANEL SEG 60 LCD DRIVER 2 SEG 60 A K The tolerance unless classified Overall Size View Area Dot Size Dot Pitch MECHANICAL SPECIFICATION PIN ASSIGNMENT Pin no. 1 2 3 4.

pg12032d Datasheet (125.48 KB)

pg12032d Datasheet Preview — Preview of pg12032d PDF

Datasheet Details

Part number:

pg12032d

Manufacturer:

POWERTIP

File Size:

125.48 KB

Description:

Lcd_module.
