PSF-24411 - 100/1000BASE-T MAGNETICS MODULES

PSF-24411 Description

PPT 100/1000BASE-T MAGNETICS MODULES Designed to Support 1:1 Turns Ratio Transceivers Designed for long haul Gigabit Ethernet (100/1000Base-T) ful.

PSF-24411 Applications

* Cable interface for isolation and low Common mode emissions Compliant with IEEE 802.3ab standard for 1000Base-T  Remark: Contact PPT for further requirements Electrical specifications@25℃-operating temperature: 0℃to70℃ Part Number PSF-24411 PSF-24412 PSF-24414 PSF-24415J Turns Ratio (±5%) 1CT

📥 Download Datasheet

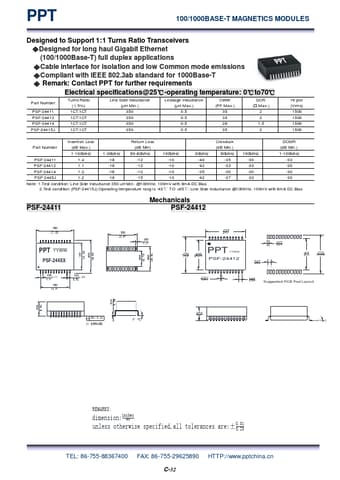

Preview of PSF-24411 PDF
datasheet Preview Page 2

Datasheet Details

Part number
PSF-24411
Manufacturer
PPT
File Size
373.47 KB
Datasheet
PSF-24411-PPT.pdf
Description
100/1000BASE-T MAGNETICS MODULES
