RS5G, RS5A Surface Mount Fast Recovery Rectifiers

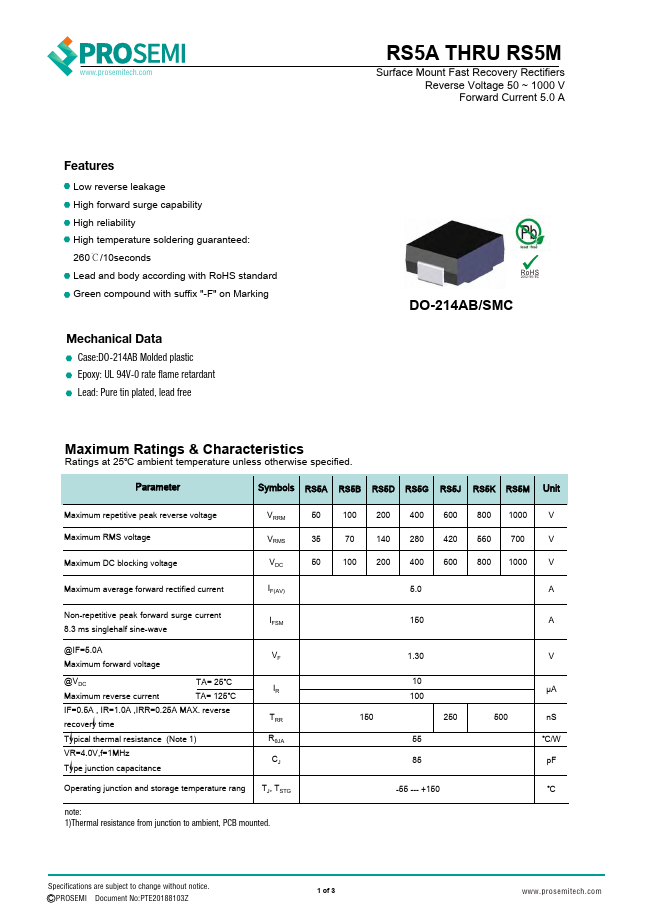

📥 Download Datasheet Datasheet Preview Page 1

Description

www.prosemitech.com RS5A THRU RS5M Surface Mount Fast Recovery Rectifiers Reverse Voltage 50 ~ 1000 V Forward Current 5.0 A .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RS5G, RS5A. Please refer to the document for exact specifications by model.

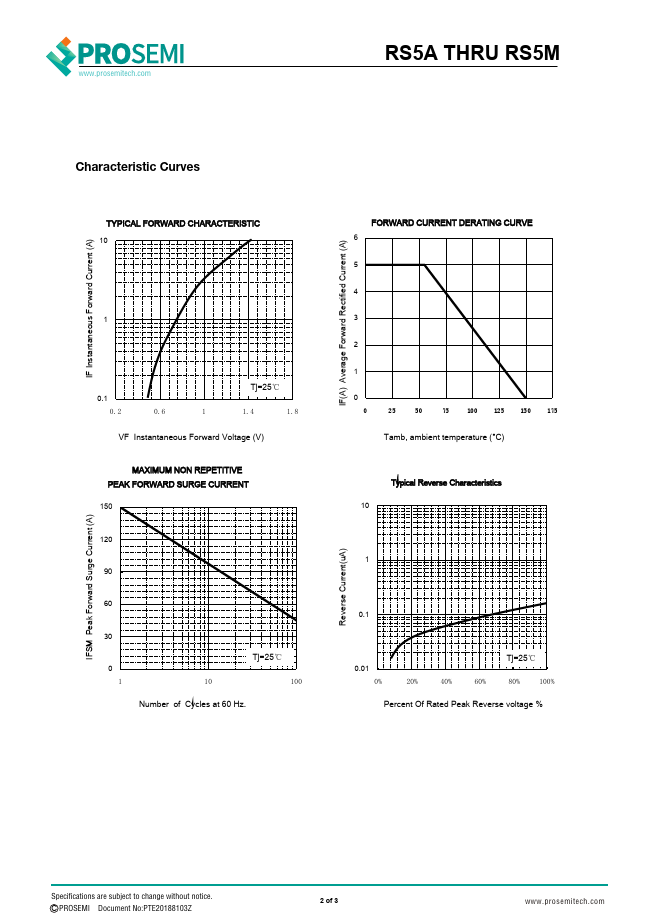

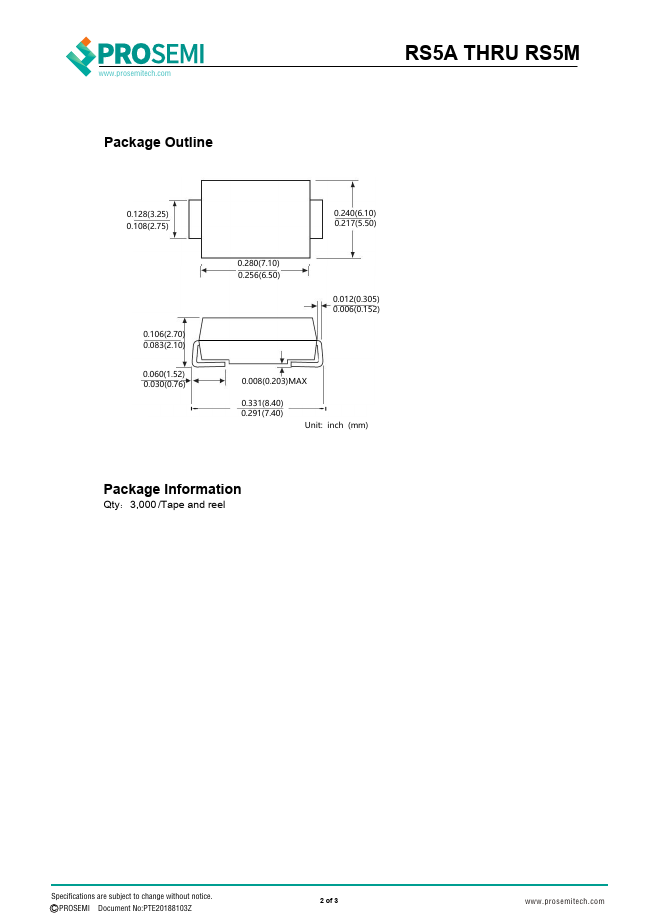

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
RS5G, RS5A
Manufacturer
PROSEMI
File Size
865.03 KB
Datasheet
RS5A-PROSEMI.pdf
Description
Surface Mount Fast Recovery Rectifiers
Note
This datasheet PDF includes multiple part numbers: RS5G, RS5A.
Please refer to the document for exact specifications by model.

Features

* Low reverse leakage High forward surge capability High reliability High temperature soldering guaranteed: 260℃/10seconds Lead and body according with RoHS standard Green compound with suffix "-F" on Marking Mechanical Data Case:DO-214AB Molded plastic Epoxy: UL 94V-0 rate flame retardant Lead: Pure
