PT12917 - 3 Band EQ Car Audio Processor

Product Overview

PTC

PT12917 3 Band EQ Car Audio Processor by PTC - Datasheet Preview — Datasheet preview – PT12917

Datasheet Details

Part number	PT12917
Manufacturer	PTC
File Size	147.16 KB
Description	3 Band EQ Car Audio Processor
Datasheet	PT12917 Datasheet

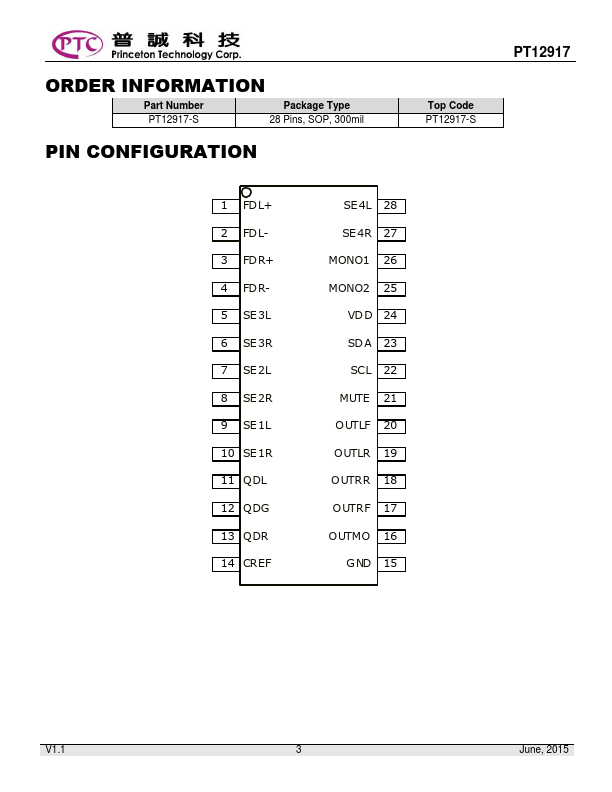

Additional preview pages of the PT12917 datasheet.

Product details

Description

The PT12917 is a car audio processor with 6 input sources selector and 3-band equalizer, which includes a fully integrated high performance audio filters that are built into a single chip to provide audio system having the highest audio performance and reliability. Car audio system

Features

Controlled by I2C Bus Micro-processor interface.
Input gain from 0 to +15dB with 1dB/step.
4 stereo inputs for audio sources.
1 Quasi-Differential input for external auxiliary input.
1 Fully-Differential input for auxiliary input or disc changer.
2 mono mixing inputs for GPS navigation system and mobilephone.
2 channels electronic volume with soft step, from +15 to -79dB with 1dB/step.
Soft mute.
1 mono output with soft step volume for subwoofer,.
