PT2353H Datasheet - PTC

PT2353H Satellite + Subwoofer 3-Speaker System Electronics Crossover IC

PT2353H is a 3-speaker system electronic crossover IC utilizing CMOS Technology specially designed for the new generation of audio equipments. 3-channel electronic volume control, 2-channel 2nd order high pass filter, 2nd order low pass filter and one mono subwoofer audio output are incorporated int.

PT2353H Features

* CMOS Technology Low Power Consumption 2 Built-in Individual Volume Control: 0 dB to -60dB 2-Channel 2nd Order High Pass Filter + 1 Mixed Mono Subwoofer Low Pass Filter Cross-Over Frequency adjustable by external passive

PT2353H_PTC.pdf

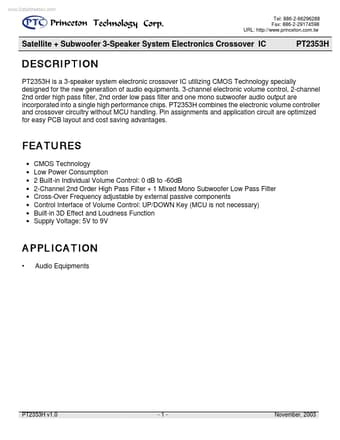

Preview of PT2353H PDF
PT2353H Datasheet Preview Page 2 PT2353H Datasheet Preview Page 3

Datasheet Details

Part number:

PT2353H

Manufacturer:

PTC

File Size:

114.68 KB

Description:

Satellite + subwoofer 3-speaker system electronics crossover ic.
