PT28C020 - 2M-Bit OTP Memory IC

Description

PT28C020 is a 2M Bit OTP Memory IC utilizing CMOS Technology.

It is organized as 256K x 8 bits and has a read access time of 90 nS.

Housed in 32-pin, PDIP or PLCC package, PT28C020’s pin configuration, programming algorithm and command register are compatible with 27C020.

Features

  • High Performance CMOS Technology Low Power Consumption Read Access Time: 90 ns On-board, or Programmer Programming 12.75 V Programming Voltage Typical Programming Pulse Duration-10 us 30mA Active Current 20uA Standby Current Fast Turn-Off for Microprocessor Compatibility Compatible with 27020 & 27C020 EPROMs JEDEC standard pin configuration 32-pin PDIP package 32-pin.

📥 Download Datasheet

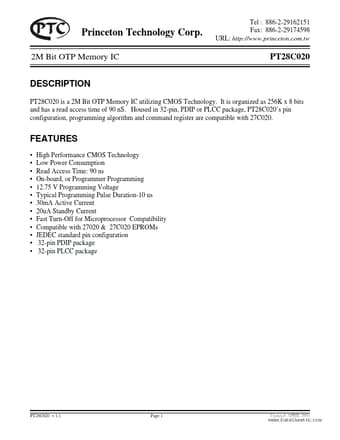

Datasheet preview – PT28C020

Datasheet Details

Part number PT28C020
Manufacturer PTC
File Size 54.88 KB
Description 2M-Bit OTP Memory IC
Datasheet download datasheet PT28C020 Datasheet
