PT6592 - LCD Segment Driver

Product Overview

PTC

📥 Download Datasheet

PT6592 LCD Segment Driver by PTC - Datasheet Preview — Datasheet preview – PT6592

Datasheet Details

Part number	PT6592
Manufacturer	PTC
File Size	390.88 KB
Description	LCD Segment Driver
Datasheet	PT6592 Datasheet

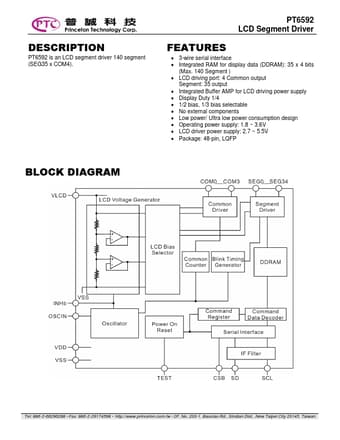

Additional preview pages of the PT6592 datasheet.

Product details

Description

PT6592 is an LCD segment driver 140 segment (SEG35 x COM4).

Features

3-wire serial interface.
Integrated RAM for display data (DDRAM): 35 x 4 bits (Max. 140 Segment ).
LCD driving port: 4 Common output Segment: 35 output.
Integrated Buffer AMP for LCD driving power supply.
Display Duty 1/4.
1/2 bias, 1/3 bias selectable.
No external components.
Low power/ Ultra low power consumption design.
Operating power supply: 1.8 ~ 3.6V.
LCD driver power supply: 2.7 ~ 5.5V.
Package: 48-pin, LQFP BLOCK.
