PL2700 - Adjustable Fast Response Current-Limited Power-Distribution Switch

PL2700 Description

PL2700 USB *PmA IC mñW3^v~Ûe°ªQCSJ[üOg *Plø *Ñ Sir ÿ 18948314942 PULAN TECHNOLOGY CO., LIMITED PL2700 80mΩ,Adjustable Fast Re.
The PL2700 is a cost-effective, low voltage,single P-MOSFET load switch,optimized for self-powered and bus-powered Universal Serial Bus (USB) appl.

PL2700 Features

* Compliant to USBSpecifications
* Integrated 80mΩ Power MOSFET
* Low Supply Current 15μA Typical at Switch On State 1μA Typical at Switch Off State
* Wide Input Voltage Range:2.4V to 5.5V
* Fast Transient Response:

PL2700 Applications

* USB Bus/Self Powered Hubs
* USB Peripherals
* Notebook Computers
* Battery-Charger Circuits

📥 Download Datasheet

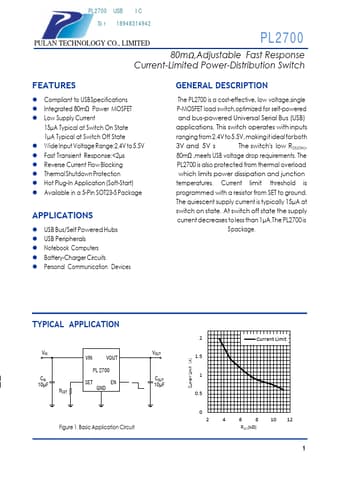

Preview of PL2700 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PL2700
Manufacturer
PULAN TECHNOLOGY
File Size
1.22 MB
Datasheet
PL2700-PULANTECHNOLOGY.pdf
Description
Adjustable Fast Response Current-Limited Power-Distribution Switch
