C2304 Datasheet - Pacific Monolithics

MMDS / ISM / S-Band Downconverter

C2304 Features

* 1800 to 4800 MHz RF 10 to 900 MHz IF 26 dB Gain, 4dB Noise Figure Single 5V Supply 27 dBm Output IP3 Separate RF AMP, MIXER/LO AMP and IF AMP cells. 75 ohm IF output impedance RF IN VDD LO IN IF OUT RF OUT IF/RF IF IN IF BIAS

C2304 General Description

The C2304 is a flexible high intercept and high gain down conversion GaAs MMIC packaged in a compact 14 pin SOIC package. Each sub-circuit is brought out on separate pins to allow for custom filtering on the IF/RF mixer interstage or custom matching for specific bands. Broadband parallel feedback ne.

C2304 Datasheet (78.47 KB)

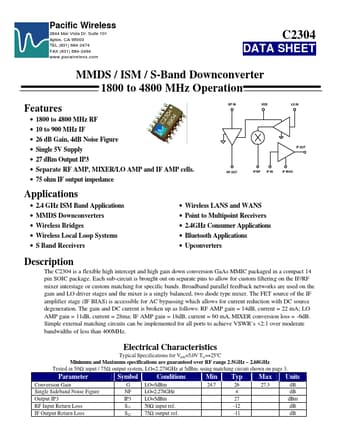

C2304 Datasheet Preview — Preview of C2304 PDF

Datasheet Details

Part number:

C2304

Manufacturer:

Pacific Monolithics

File Size:

78.47 KB

Description:

Mmds / ism / s-band downconverter.
Pacific Wireless 2844 Mar Vista Dr. Suite 101 Aptos, CA 95003 TEL (831) 684-2474 FAX (831) 684-2494 www.pacwireless.com C2304.. DATA SHEET MMDS / IS.
