C2306 Datasheet - Pacific Monolithics

MMDS / ISM / S-Band Mixer

C2306 Features

* 10 dB Gain 10 to 900 MHz Integrated IF Amplifier Single 5V Supply 26 dBm Output IP3 Separate MIXER/LO AMP and IF AMP cells. 75 ohm IF output impedance VDD LO IN IF/RF IF OUT IF IN IF BIAS Applications

C2306 General Description

The C2306 is a flexible, high intercept, frequency conversion GaAs MMIC packaged in a 14 pin SOIC package. The MMIC is usable as an upconverter or downconverter mixer. Each subcircuit is brought out on separate pins to allow for custom filtering on the IF/RF mixer interstage or custom matching for s.

C2306 Datasheet (71.36 KB)

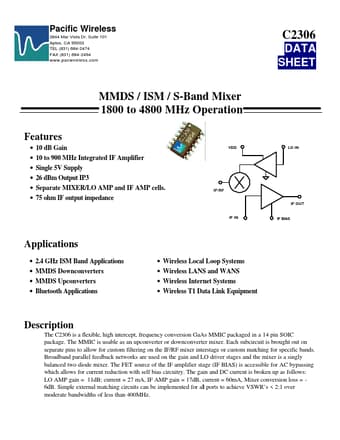

C2306 Datasheet Preview — Preview of C2306 PDF

Datasheet Details

Part number:

C2306

Manufacturer:

Pacific Monolithics

File Size:

71.36 KB

Description:

Mmds / ism / s-band mixer.
Pacific Wireless 2844 Mar Vista Dr. Suite 101 Aptos, CA 95003 TEL (831) 684-2474 FAX (831) 684-2494 www.pacwireless.com C2306.. DATA SHEET MMDS / IS.
