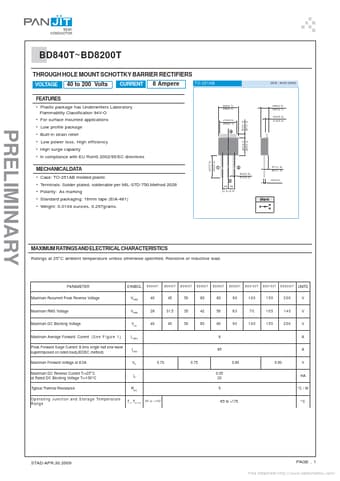

Part number: BD8100T
Manufacturer: Pan Jit International
File Size: 61.14KB
Download: 📄 Datasheet
Description: THROUGH HOLE MOUNT SCHOTTKY BARRIER RECTIFIERS
* Plastic package has Underwriters Laboratory Flammability Classification 94V-O
* For surface mounted applications
* Low profile package
* Built-in strain.
* Low profile package
* Built-in strain relief
* High surge capacity
* In compliance with EU RoHS 2002/9.
Image gallery
