BD8112EFV-M Datasheet - ROHM

BD8112EFV-M White Backlight LED Drivers

BD8112EFV-M is a white LED driver with the capability of withstanding high input voltage (36V MAX). This driver has 2ch constant-current drivers integrated in 1-chip, which each channel can draw up to 150mA max, so that high brightness LED driving can be realized. Furthermore, a current-mode buck-bo.

BD8112EFV-M Features

* 1) Input voltage range 5.0 -30 V 2) Integrated buck-boost current-mode DC/DC controller 3) Two integrated LED current driver channels (150 mA max. each channel) 4) PWM Light Modulation (Minimum Pulse Width 25µs) 5) Oscillation frequency accuracy ±5% 6) Built-in protection

BD8112EFV-M Datasheet (532.69 KB)

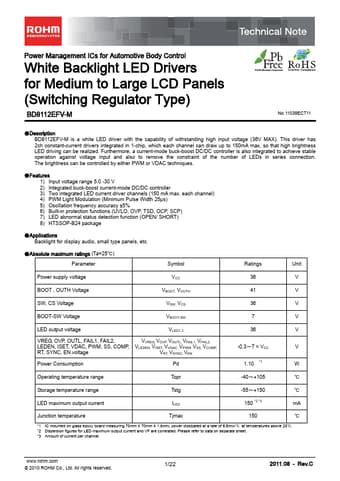

Preview of BD8112EFV-M PDF
BD8112EFV-M Datasheet Preview Page 2 BD8112EFV-M Datasheet Preview Page 3

Datasheet Details

Part number:

BD8112EFV-M

Manufacturer:

ROHM ↗

File Size:

532.69 KB

Description:

White backlight led drivers.
