BD8118FM White LED Driver

BD8118FM Description

TECHNICAL NOTE For LCD Panel Backlight Applications White LED Driver IC BD8118FM rev.1.50 * Outline BD8118FM is a white LED driver featuring a.

BD8118FM Features

* 1) Input voltage range 4.5
* 30 V 2) Integrated step-up DC/DC controller 3) Four integrated LED current driver channels (150 mA max. each channel) 4) Compatible with PWM light-modulation 0.38
* 99.5%) 5) Built-in protection functions (UVLO, OVP, TSD, OCP) 6) Abnormal status detecti

BD8118FM Applications

* White LED Driver IC BD8118FM rev. 1.50
* Outline BD8118FM is a white LED driver featuring a high input voltage range (36V MAX), an integrated step-up DC/DC converter and four constant-current output drivers on a single chip. Brightness can be controlled by either PWM or VDAC methods.
* Fe

📥 Download Datasheet

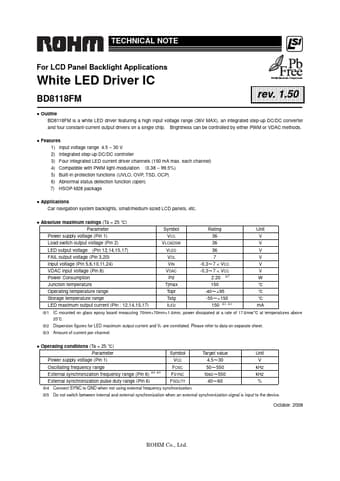

Preview of BD8118FM PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BD8118FM
Manufacturer
ROHM ↗
File Size
743.12 KB
Datasheet
BD8118FM-ROHM.pdf
Description
White LED Driver
