ES1AF - SURFACE MOUNT SUPERFAST RECTIFIER

ES1AF Description

ES1AF SERIES SURFACE MOUNT SUPERFAST RECTIFIER VOLTAGE 50-600 Volts CURRENT 1 Ampere .

ES1AF Applications

* Low profile package
* Built-in strain relief
* Easy pick and place
* Plastic package has Underwriters Laboratory Flammability Classification 94V-O
* Superfast recovery times for high efficiency
* Glass Passivated Chip Junction
* Lead free in

📥 Download Datasheet

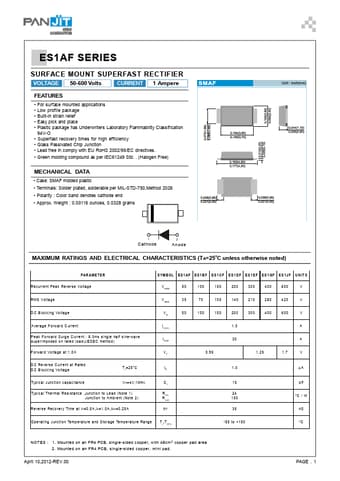

Preview of ES1AF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ES1AF
Manufacturer
Pan Jit International
File Size
275.19 KB
Datasheet
ES1AF-PanJitInternational.pdf
Description
SURFACE MOUNT SUPERFAST RECTIFIER
