Part number:
ES1001FL-AU
Manufacturer:
Pan Jit International
File Size:
213.30 KB
Description:
Small surface mount super fast diodes.
* For surface mounted applications in order to optimize board space
* Ideal for automated placement
* Glass passivated
* High temperature soldering : 260oC / 10 seconds at terminals
* Acqire quality system certificate : TS16949
* AEC-Q101 qualified

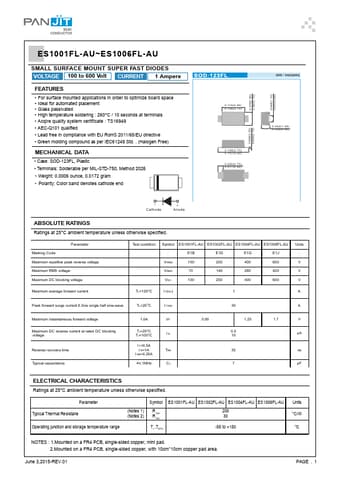

ES1001FL-AU Datasheet (213.30 KB)
ES1001FL-AU
Pan Jit International
213.30 KB
Small surface mount super fast diodes.
