MBR3030PT, MBR3020PT, 30 AMPERES SCHOTTKY BARRIER RECTIFIERS

MBR3020PT~MBR30200PT 30 AMPERES SCHOTTKY BARRIER RECTIFIERS VOLTAGE 20 to 200 Volts CURRENT 30 Amperes TO-3P Unit: inch (mm) .

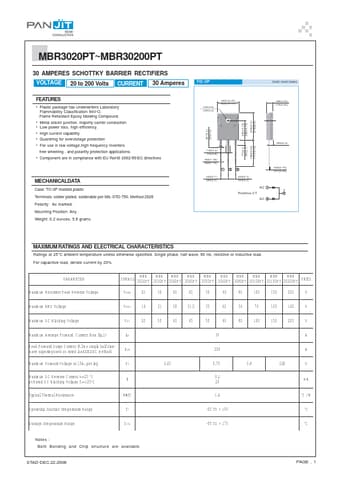

datasheet Preview Page 1 from Datasheet4u.com

MBR3020PT-PanJitInternational.pdf

MBR3030PT Datasheet Preview — This datasheet PDF includes multiple part numbers: MBR3030PT, MBR3020PT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MBR3030PT, MBR3020PT

Manufacturer:

Pan Jit International

File Size:

37.05 KB

Description:

30 AMPERES SCHOTTKY BARRIER RECTIFIERS

Note:

This datasheet PDF includes multiple part numbers: MBR3030PT, MBR3020PT.
Please refer to the document for exact specifications by model.

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O. Flame Retardant Epoxy Molding Compound.
* Metal silicon junction, majority carrier conduction
* Low power loss, high efficiency.
* High current capability
* Guardring for overvlot

Applications

* Component are in compliance with EU RoHS 2002/95/EC directives MECHANICALDATA Case: TO-3P molded plastic Terminals: solder plated, solderable per MIL-STD-750, Method 2026 Polarity: As marked. Mounting Position: Any Weight: 0.2 ounces, 5.6 grams. .142(3.6) .125(3.2) .640(16.25) .620(15.7
