MBR30300PT - Schottky Barrier Rectifier

Datasheet Summary

Features

  • Multilayer Metal -Silicon Potential Structure.
  • Low Leakage Current.
  • High Current Capability, High Efficiency.
  • High Junction Temperature Capability.
  • RoHs Product.
  • Minimum Lot-to-Lot variations for robust device performance and reliable operation.

📥 Download Datasheet

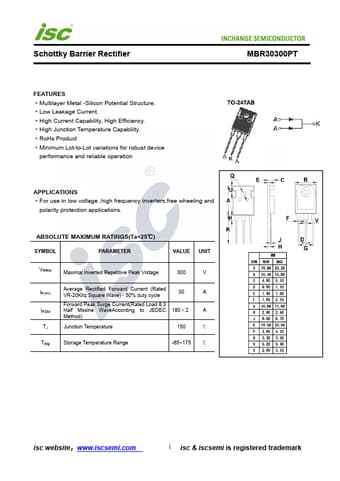

Datasheet preview – MBR30300PT

Datasheet Details

Part number MBR30300PT
Manufacturer INCHANGE
File Size 213.19 KB
Description Schottky Barrier Rectifier
Datasheet download datasheet MBR30300PT Datasheet
Additional preview pages of the MBR30300PT datasheet.

📁 Similar Datasheet

  • MBR30300CT - High Barrier Power Schottky Rectifiers (Formosa MS)
  • MBR30300FCT - High Barrier Power Schottky Rectifiers (Formosa MS)
  • MBR3030 - Schottky Barrier Rectifier (Micro Commercial Components)
  • MBR3030 - SCHOTTKY BARRIER RECTIFIER (Byte)
  • MBR3030CT - SCHOTTKY BARRIER RECTIFIER (Pan Jit International)
  • MBR3030CT - Schottky Barrier Rectifier (Inchange Semiconductor)
  • MBR3030CT - Schottky Barrier Rectifier (Micro Commercial Components)
  • MBR3030CT - Schottky Barrier Diodes (Sirectifier Semiconductors)
  • MBR3030CT - SCHOTTKY BARRIER RECTIFIER (JCET)
  • MBR3030CT - SCHOTTKY BARRIER RECTIFIER (BL GALAXY ELECTRICAL)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text
Schottky Barrier Rectifier MBR30300PT FEATURES ·Multilayer Metal -Silicon Potential Structure. ·Low Leakage Current. ·High Current Capability, High Efficiency. ·High Junction Temperature Capability. ·RoHs Product ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·For use in low voltage ,high frequency inverters,free wheeling and polarity protection applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VRRM Maximal Inverted Repetitive Peak Voltage 300 V IF(AV) IFSM TJ Tstg Average Rectified Forward Current (Rated VR-20Khz Square Wave) - 50% duty cycle 30 A Forward Peak Surge Current(Rated Load 8.
