MBR30100PT - Schottky Barrier Rectifier

Datasheet Summary

Features

  • Plastic material used carriers Unerwriter Laboratory.
  • Metal silicon rectifier, majonty carrier conduction.
  • Low Power Loss,High Efficiency.
  • Guard ring for transient protection.
  • High Surge Capability,High Current Capability.
  • Minimum Lot-to-Lot variations for robust device performance and reliable operation.

📥 Download Datasheet

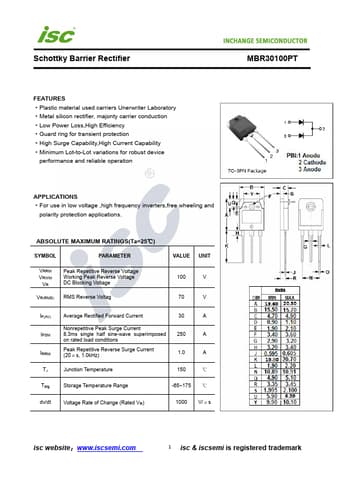

Datasheet preview – MBR30100PT

Datasheet Details

Part number MBR30100PT
Manufacturer INCHANGE
File Size 208.56 KB
Description Schottky Barrier Rectifier
Datasheet download datasheet MBR30100PT Datasheet
Additional preview pages of the MBR30100PT datasheet.

📁 Similar Datasheet

  • MBR30100PT - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (MIC)
  • MBR30100PT - High Voltage Dual Schottky Rectifier (Vishay)
  • MBR30100PT - 30.0 Ampere Dual Common Cathode Schottky Barrier Rectifiers (Thinki Semiconductor)
  • MBR30100PT - 30 Amp Schottky Barrier Rectifier (MCC)
  • MBR30100PT - Schottky Barrier Rectifiers (Luguang Electronic)
  • MBR30100PT - Schottky Barrier Rectifiers (Taiwan Semiconductor)
  • MBR30100PT - Schottky Barrier Rectifier (Sirectifier)
  • MBR30100PT - SCHOTTKY BARRIER RECTIFIER (KD)
  • MBR30100PT - SCHOTTKY BARRIER RECTIFIER (First Silicon)
  • MBR30100PT - 30.0A SCHOTTKY BARRIER RECTIFIERS (WILLAS)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text
Schottky Barrier Rectifier MBR30100PT FEATURES ·Plastic material used carriers Unerwriter Laboratory ·Metal silicon rectifier, majonty carrier conduction ·Low Power Loss,High Efficiency ·Guard ring for transient protection ·High Surge Capability,High Current Capability ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·For use in low voltage ,high frequency inverters,free wheeling and polarity protection applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VRRM VRWM VR VR(RMS) Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltag VALUE UNIT 100 V 70 V IF(AV) Average Rectified Forward Current 30 A Nonrepetitive Peak Surge Current IFSM 8.
