MBR30120CT - Schottky Barrier Rectifier

Datasheet Summary

Features

  • Low Power Loss,High Efficiency.
  • Guard ring for transient protection.
  • High Surge Capability,High Current Capability.
  • 100% tested.
  • Minimum Lot-to-Lot variations for robust device performance and reliable operation.

📥 Download Datasheet

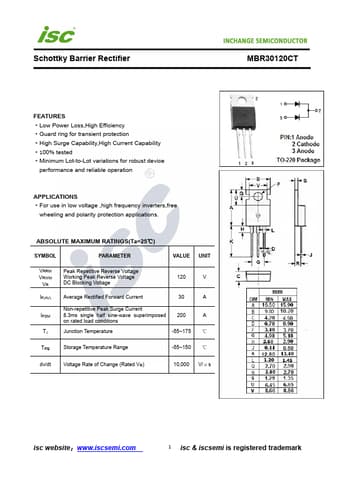

Datasheet preview – MBR30120CT

Datasheet Details

Part number MBR30120CT
Manufacturer INCHANGE
File Size 203.66 KB
Description Schottky Barrier Rectifier
Datasheet download datasheet MBR30120CT Datasheet
Additional preview pages of the MBR30120CT datasheet.

📁 Similar Datasheet

  • MBR30120CT - SCHOTTKY RECTIFIER (SMC-DIODE)
  • MBR30120CT - SCHOTTKY RECTIFIER (SANGDEST MICROELECTRONICS)
  • MBR30120FCT - DUAL SCHOTTKY BARRIER RECTIFIER (PowerSilicon)
  • MBR30100 - Schottky Barrier (Micro Commercial Components)
  • MBR30100 - SCHOTTKY BARRIER RECTIFIER (Byte)
  • MBR30100 - Schottky Barrier Rectifier (SeCoS)
  • MBR30100 - SCHOTTKY RECTIFIER (SMC Diode)
  • MBR30100C - 30A SCHOTTKY BARRIER RECTIFIER (Unisonic Technologies)
  • MBR30100C - HIGH VOLTAGE POWER SCHOTTKY RECTIFIER (Diodes)
  • MBR30100C - HIGH VOLTAGE POWER SCHOTTKY RECTIFIER (BCD)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text
Schottky Barrier Rectifier MBR30120CT FEATURES ·Low Power Loss,High Efficiency ·Guard ring for transient protection ·High Surge Capability,High Current Capability ·100% tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·For use in low voltage ,high frequency inverters,free wheeling and polarity protection applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VRRM VRWM VR Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage 120 V IF(AV) Average Rectified Forward Current 30 A Non-repetitive Peak Surge Current IFSM 8.
