PJ6680 25V N-Channel Enhancement Mode MOSFET

PJ6680 Description

www.DataSheet4U.com PJ6680 25V N-Channel Enhancement Mode MOSFET .

PJ6680 Features

* RDS(ON), VGS@10V,IDS@12A=10mΩ
* RDS(ON), VGS@4.5V,IDS@10A=18mΩ
* Advanced Trench Process Technology
* High Density Cell Design For Ultra Low On-Resistance
* Specially Designed for DC/DC Converters
* Fully Characterized Avalanche Voltage and Current

📥 Download Datasheet

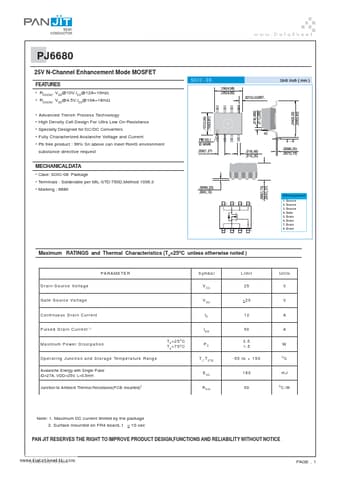

Preview of PJ6680 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PJ6680
Manufacturer
Pan Jit International
File Size
173.86 KB
Datasheet
PJ6680_PanJitInternational.pdf
Description
25V N-Channel Enhancement Mode MOSFET
