SA30 - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR

Pan Jit International

📥 Download Datasheet

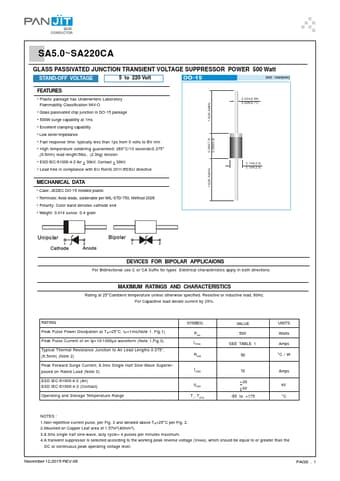

SA30 Datasheet Preview — Preview of SA30 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SA30
Manufacturer	Pan Jit International
File Size	79.71 KB
Description	GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
Datasheet	SA30-PanJitInternational.pdf

SA30 Product details

Features

Plastic package has Underwriters Laboratory Flammability Classification 94V-O.
Glass passivated chip junction in DO-15 package.
500W surge capability at 1ms.
Excellent clamping capability.
Low zener impedance.
Fast response time: typically less than 1ps from 0 volts to BV min.
High temperature soldering guaranteed: 260°C/10 seconds/0.375" ,(9.5mm) lead length/5lbs. , (2.3kg) tension.
ESD IEC-61000-4-2 Air + 30kV, Contact + 3.
