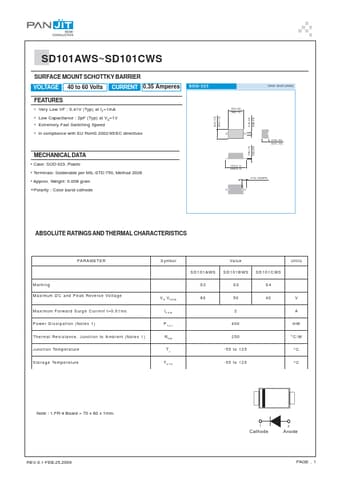

SD101AWS Datasheet, Barrier, Pan Jit International

SD101AWS Features

• Barrier
• Very Low VF : 0.41V (Typ) at IF=1mA
• Low Capacitance : 2pF (Typ) at VR=1V
• Extremely Fast Switching Speed
• In compliance with EU RoHS 2002/95/EC dir

PDF File Details

Part number:

SD101AWS

Manufacturer:

Pan Jit International

File Size:

66.15kb

Download:

📄 Datasheet

Description:

Surface mount schottky barrier.

TAGS

SD101AWS

Pan Jit International
