SD1040YT, SD1020YT (SD1020YT - SD10100YT) SCHOTTKY BARRIER RECTIFIER

Pan Jit International

Description

SD1020YT Thru SD10100YT SCHOTTKY BARRIER RECTIFIER VOLTAGE - 20 to 100 Volts CURRENT - 10.0 Amperes .

📥 Download Datasheet

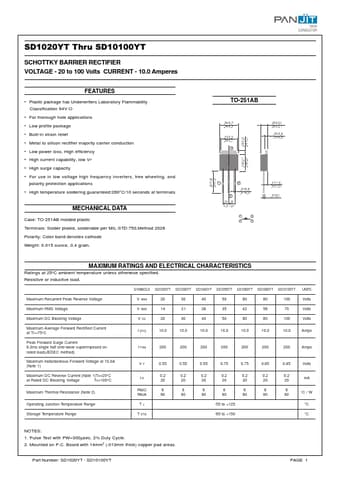

SD1040YT Datasheet Preview — This datasheet PDF includes multiple part numbers: SD1040YT, SD1020YT. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SD1040YT, SD1020YT
Manufacturer: Pan Jit International
File Size: 43.33 KB
Datasheet: SD1020YT_PanJitInternational.pdf
Description: (SD1020YT - SD10100YT) SCHOTTKY BARRIER RECTIFIER
Note: This datasheet PDF includes multiple part numbers: SD1040YT, SD1020YT.
Please refer to the document for exact specifications by model.

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O

Applications

* Low profile package
* Built-in strain relief ÁÅÈÄÁÇ ÁÅÈÉÄ ÈÁ Ç ÁÅÉÄ ÈÁÆ Ç ÁÂÃÄÅÁÇ ÁÂÅ Ä ÅÁ Ç TO-251AB ÁÂÅÉÄÂÁÈÇ
* Metal to silicon rectifier majority carrier conduction
* Low power loss, High efficiency
* High current capability, low VF
