UF1001, UF1000 - (UF1000 - UF1008) ULTRAFAST SWITCHING RECTIFIER

Pan Jit International

📥 Download Datasheet

UF1001 Datasheet Preview — This datasheet PDF includes multiple part numbers: UF1001, UF1000. Please refer to the document for exact specifications by model.

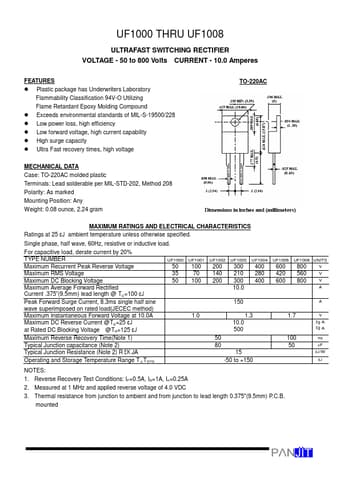

datasheet Preview Page 2

Datasheet Details

Part number	UF1001, UF1000
Manufacturer	Pan Jit International
File Size	60.39 KB
Description	(UF1000 - UF1008) ULTRAFAST SWITCHING RECTIFIER
Datasheet	UF1000_PanJitInternational.pdf
Note	This datasheet PDF includes multiple part numbers: UF1001, UF1000. Please refer to the document for exact specifications by model.

UF1001 Product details

Features

l Plastic package has Underwriters Laboratory Flammability Classification 94V-O Utilizing l l l l l Flame Retardant Epoxy Molding Compound Exceeds environmental standards of MIL-S-19500/228 Low power loss, high efficiency Low forward voltage, high current capability High surge capacity Ultra Fast recovery times, high voltage TO-220AC.
