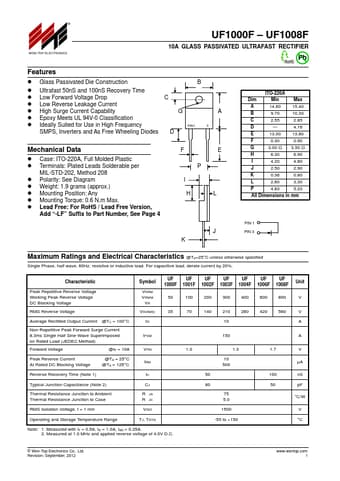

UF1000F, UF1000F-WON - 10A GLASS PASSIVATED ULTRAFAST RECTIFIER

WON-TOP

Datasheet Details

Part number	UF1000F, UF1000F-WON
Manufacturer	WON-TOP
File Size	41.84 KB
Description	10A GLASS PASSIVATED ULTRAFAST RECTIFIER
Datasheet	UF1000F-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: UF1000F, UF1000F-WON. Please refer to the document for exact specifications by model.

Glass Passivated Die Construction.
Ultrafast 50nS and 100nS Recovery Time.
Low Forward Voltage Drop.
Low Reverse Leakage Current.
High Surge Current Capability.
Epoxy Meets UL 94V-0 Classification.
Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes C G D B PIN1 3 A Mechanical Data.
Case: ITO-220A, Full Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: See Diagram.
