2SA921 Datasheet PDF - Panasonic Semiconductor Silicon PNP epitaxial planer type Transistor Specs

2SA921 - Silicon PNP epitaxial planer type Transistor

Datasheet Summary

Features

q q High collector to emitter voltage VCEO. Low noise voltage NV. (Ta=25˚C) Ratings.
120.
120.
5.
50.
20 250 150.
55 ~ +150 Unit V V V mA mA mW ˚C ˚C s Absolute Maximum Ratings Parameter Collector to base voltage Collector to emitter voltage Emitter to base voltage Peak collector current Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO ICP IC PC Tj Tstg 13.5±0.5 0.45.
0.1 1.27.

Datasheet Details

Part number	2SA921
Manufacturer	Panasonic Semiconductor
File Size	37.29 KB
Description	Silicon PNP epitaxial planer type Transistor
Datasheet	2SA921 Datasheet
Additional preview pages of the 2SA921 datasheet.

📁 Similar Datasheet

2SA928 - PNP SILICON TRANSISTOR (Micro Electronics)

2SA928 - PNP Silicon Epitaxial Planar Transistor (PACO)

2SA928A - PNP SILICON TRANSISTOR (UTC)

2SA929 - PNP Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)

2SA900 - PNP Transistor (INCHANGE)

2SA900 - Silicon POwer Transistors (SavantIC)

2SA9012 - Transistors (ETC)

2SA9015 - Transistors (ETC)

2SA904 - PNP Transistor (ETC)

2SA904A - PNP Transistor (ETC)

Full PDF Text Transcription

Click to expand full text

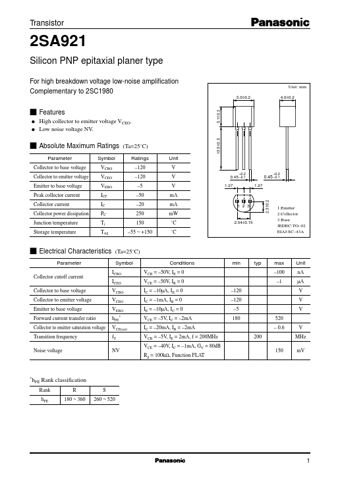

Transistor 2SA921 Silicon PNP epitaxial planer type For high breakdown voltage low-noise amplification Complementary to 2SC1980 5.1±0.2 Unit: mm 5.0±0.2 4.0±0.2 s Features q q High collector to emitter voltage VCEO. Low noise voltage NV. (Ta=25˚C) Ratings –120 –120 –5 –50 –20 250 150 –55 ~ +150 Unit V V V mA mA mW ˚C ˚C s Absolute Maximum Ratings Parameter Collector to base voltage Collector to emitter voltage Emitter to base voltage Peak collector current Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO ICP IC PC Tj Tstg 13.5±0.5 0.45 –0.1 1.27 +0.2 0.45 –0.1 1.27 +0.2 1 2 3 2.3±0.2 2.54±0.
