2SB952A, 2SB0952 Power Transistors

2SB952A Description

Power Transistors 2SB0952 (2SB952), 2SB0952A (2SB952A) www.DataSheet4U.net Silicon PNP epitaxial planar type For low-voltage switching Unit: mm

2SB952A Features

* Low collector-emitter saturation voltage VCE(sat)
* High-speed switching
* N type package enabling direct soldering of the radiating fin to the printed circuit board, etc. of small electronic equipment 10.0±0.3 1.5±0.1 8.5±0.2 6.0±0.2 3.4±0.3 1.0±0.1 4.4±0.5 Parameter C

2SB952A Applications

* or general electronic equipment (such as office equipment, communications equipment, measuring instruments and household appliances). Consult our sales staff in advance for information on the following applications:
* Special applications (such as for airplanes, aerospace, automobiles, traff

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2SB952A, 2SB0952. Please refer to the document for exact specifications by model.

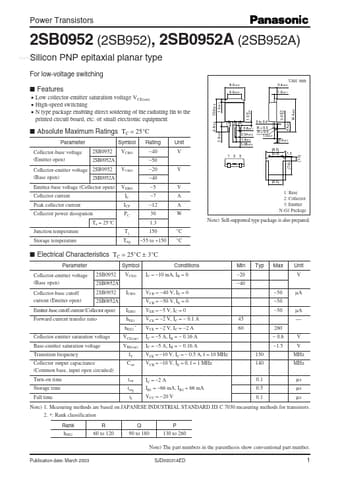

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SB952A, 2SB0952
Manufacturer
Panasonic Semiconductor
File Size
103.33 KB
Datasheet
2SB0952_PanasonicSemiconductor.pdf
Description
Power Transistors
Note
This datasheet PDF includes multiple part numbers: 2SB952A, 2SB0952.
Please refer to the document for exact specifications by model.
