* Low collector-emitter saturation voltage VCE(sat)
* High-speed switching
* Full-pack package which can be installed to the heat sink with one screw 10.0±0.2 5.5±0.2 4.2±0.2 4.2±0.2 2.7±0.2 7.5±0.2
* Absolute Maximum Ratings TC = 25°C Parameter Collector-base voltage
2SB953
Panasonic Semiconductor
103.54 KB
Power transistors.
Power Transistors

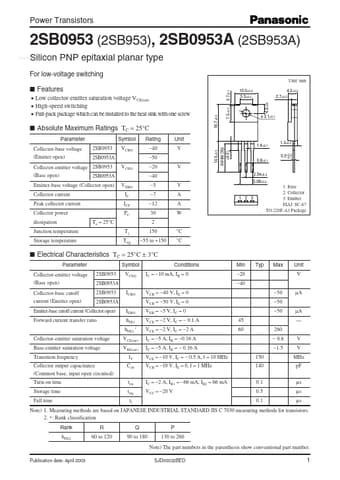

2SB0953 (2SB953), 2SB0953A (2SB953A)
www.DataSheet4U.net
Silicon PNP epitaxial planar type
For low-voltage switching
Unit: mm
0.7±.
