2SC5380 - Silicon NPN triple diffusion mesa type Power Transistor

Product Overview

Panasonic Semiconductor

Part number	2SC5380
Manufacturer	Panasonic Semiconductor
File Size	37.37 KB
Description	Silicon NPN triple diffusion mesa type Power Transistor
Datasheet	2SC5380 Datasheet
Additional preview pages of the 2SC5380 datasheet.

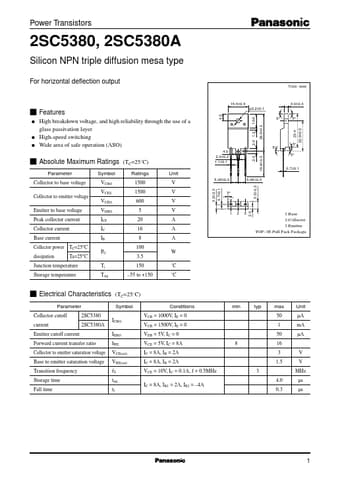

φ3.2±0.1 5° 26.5±0.5 3.0±0.3 5° 23.4 22.0±0.5 2.0 1.2 5° 18.6±0.5 5° 5° s Absolute Maximum Ratings Parameter Collector to base voltage Collector to emitter voltage Emitter to base voltage Peak collector current Collector current Base current Collector power TC=25°C dissipation Ta=25°C Junction temperature Storage temperature Symbol VCBO VCES VCEO VEBO ICP IC IB PC Tj Tstg 4.0 2.0±0.2 1.1±0.1 2.0 0.7±0.1 5.45±0.3 3.3±0.3 0.7±0.1 5.45±0.3 5.5±0.3 5° 1 2 3 2.0 1:Base 2:Collector 3:.
