5270, Silicon NPN triple diffusion mesa type(For horizontal deflection output)

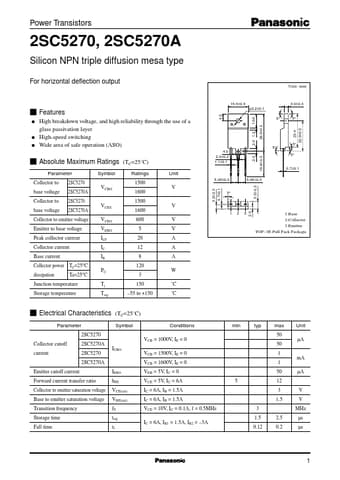

Power Transistors 2SC5270, 2SC5270A Silicon NPN triple diffusion mesa type For horizontal deflection output 15.5±0.5 4.5 Unit: mm q q q High brea.

datasheet Preview Page 1 from Datasheet4u.com

5270_PanasonicSemiconductor.pdf

5270 Datasheet Preview — Preview of 5270 PDF

Datasheet Details

Part number:

5270

Manufacturer:

Panasonic Semiconductor

File Size:

35.00 KB

Description:

Silicon NPN triple diffusion mesa type(For horizontal deflection output)

Features

* φ3.2±0.1 5° 26.5±0.5 3.0±0.3 5° 23.4 22.0±0.5 2.0 1.2 5° 18.6±0.5 5° 5° s Absolute Maximum Ratings Parameter Collector to base voltage Collector to base voltage 2SC5270 2SC5270A 2SC5270 2SC5270A Symbol VCBO VCES VCEO VEBO ICP IC IB Ta=25°C PC Tj Tstg 4.0 2.0±0.2 1.1±0.1 2.0 0.7±0.1 5.45±0.
