AN5270

Power Amplifier

AN5270 Features

* 5.6±0.25 HSIP009-P-0000 s Block Diagram Pre amp. 1 2 3 Volume control Tone control 4 5 6 7 8 VCC1 Vol-ctl. Tone-ctl. RF Out s Pin Descriptions Pin No. 1 2 3 4 5 6 7 8 9 VCC1 Sound input Low frequency input Volume control Tone control Ripple filter Ground Sound output VCC2 Pin Name

AN5270 General Description

Pin No. 1 2 3 4 5 6 7 8 9 VCC1 Sound input Low frequency input Volume control Tone control Ripple filter Ground Sound output VCC2 Pin Name Note) Pins 2 and 4 are weaker in protection against positive surge than the other pins. It is necessary to pay attention during application use. GND VCC2 In.

AN5270 Datasheet (82.62 KB)

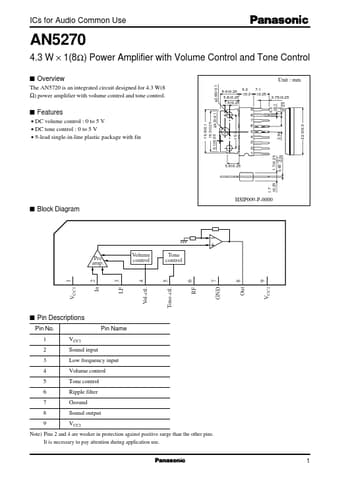

Preview of AN5270 PDF

Datasheet Details

Part number:

AN5270

Manufacturer:

Panasonic Semiconductor

File Size:

82.62 KB

Description:

Power amplifier.
ICs for Audio Common Use AN5270 4.3 W × 1(8Ω) Power Amplifier with Volume Control and Tone Control s Overview The AN5720 is an integrated circuit des.
